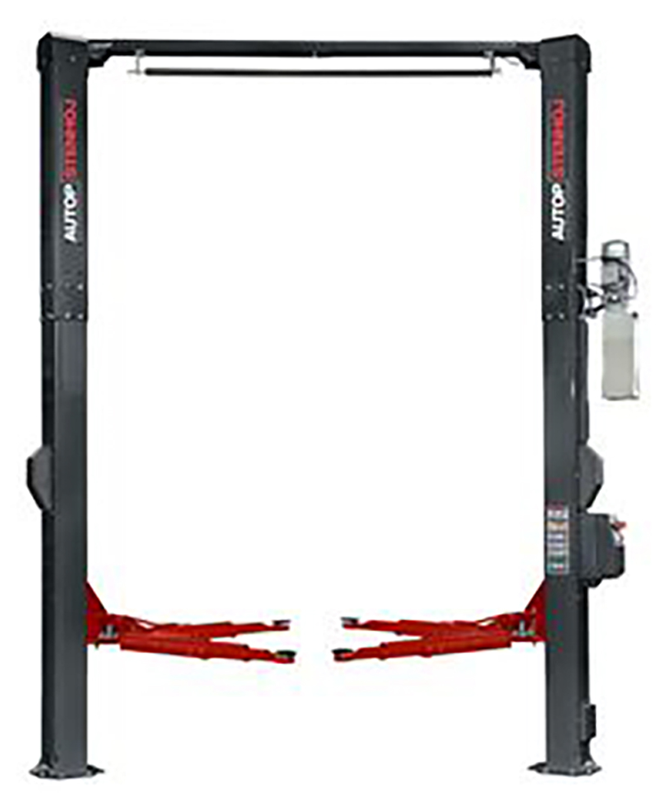

AutopStenhoj Magnat 40 2 Post Lift
AutopStenhoj Magnat 40 4 Tonne 2 Post Lift
The AUTOPSTENHOJ Magnat 40 Electro-hydraulically operated vehicle lift has a lifting capacity of 4.0 tonnes. This two post lift, which is baseless. This lift is ideal for most makes and models of cars!
ALL AUTOPSTENHOJ two post lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
- Asymmetric post installation for ideal door-opening angle
- Very stable bent posts
- Without base frame
- One hydraulic unit
- Carriage with slide blocks
- Pushbutton control unit with alarm signal
- Adjustable top stop
- Mechanic synchronization
- Safety ratchet system
- Double telescopic front and rear arms, as standard
- Possibility of parallel parking of arms
- Automatic arm locking system
- Low minimum height
AUTOPSTENHOJ Lifts are manufactured in Denmark
Technical Specification
| Lifting capacity | 4000kg |
| Lifting / lowering time | 30 seconds / 30 seconds |
| Minimum height | 95mm |
| Maximum height | 1,800mm |
| Front minimum / maximum arm length | F Uni: 640 – 1,145 mm |
| Rear minimum / maximum arm length | F Uni: 880 – 1,560 mm |
| Motor size | 2.2kW x 1 |
| Power Requirements | 3 phase – 16a Isolator Required |
| Operation | Electro-hydraulic |
