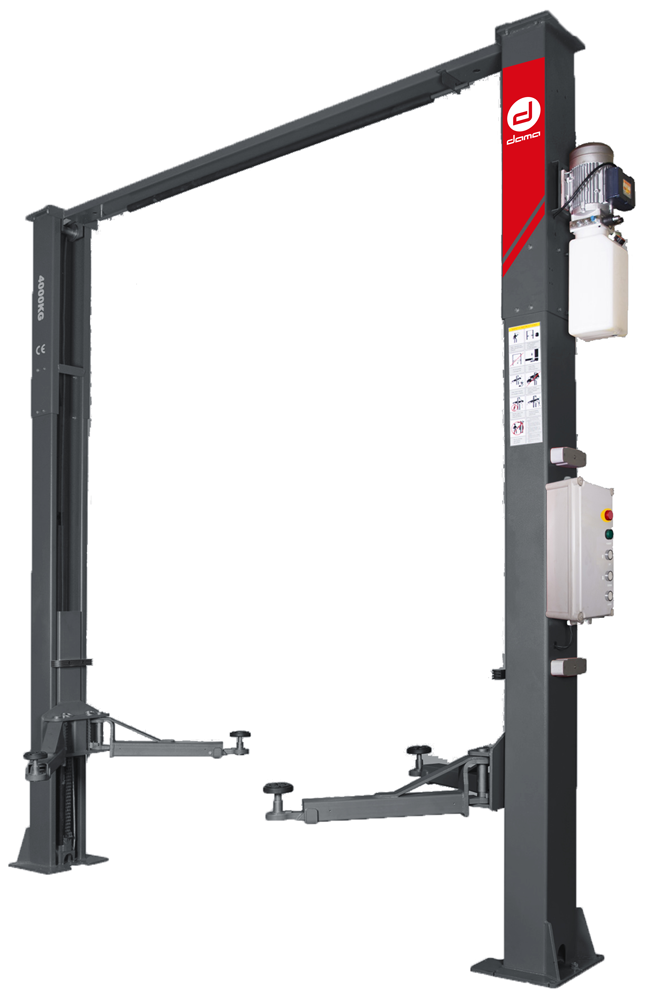

Dama HDM4.0T/SB2 2 Post Lift
Dama HDM4.0T/SB2 2 Post Lift
This is one of the most popular lifts in our range and gives top quality features at an excellent price.
An ideal service lift with baseless design ideal where equipment needs to be manoeuvred beneath the lift. This lift has a lifting capacity of 4 tonne gives full flexibility of vehicles from cars, 4x4’s and vans.
Comes complete with 4 x 3 stage arms for maximum flexibility and 80mm riser extension pads.
Price includes delivery and installation.
Optional EV Arms
4 x special arms ideal for EV lifting and battery replacement by providing better access to the vehicle. Can be purchased with lift or retrofitted to existing HDM4.0T/2 or HDM4.0T/SB2.
Optional Height Extension
300mm or 500mm extensions to provide extra lifting height. Can be purchased with lift or retrofitted to existing HDM4.0T/SB2.
Features
- Two chain driven pistons
- Synchronization steel cable
- 3900mm inner clearance
- Aluminum Alloy Motor
- Electromagnetic Lowering Valve
- 2 height switches, one for car and one for carriage
- Electrical locks 24V
Technical Specification
| Maximum Lifting Weight | 4000Kg |
| Lifting Time | 60 seconds |
| Lowering Time | 18 - 40 seconds |
| Power Source | 220V / 1ph or 380V / 3ph 2.2Kw |
| Net Weight | 710Kg |
| Warranty | 24 Months |

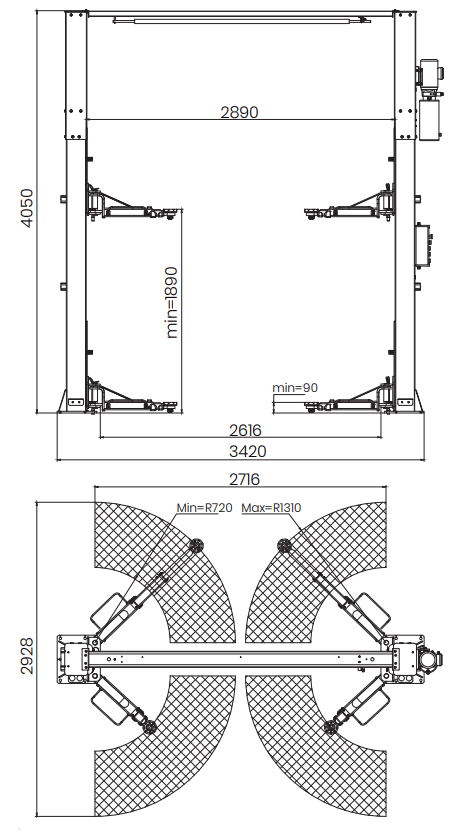

Drawings
Optional add-on: Dama HDM20A Lifting Platform
Lifting platform that can be fitted to a selection of 2 post lifts to quickly convert to a agri lift and enable the lifting of quad-bikes, sweepers, lawnmowers etc.
Features
- 1.8t Lifting capacity
- Adjustable front beam
- Adjustable rear beam
Compatible with...
- HDM4.0T
- HDM4.0T/2
- HDM4.0T/SB2
Call us now on 01823 328530 for more details
