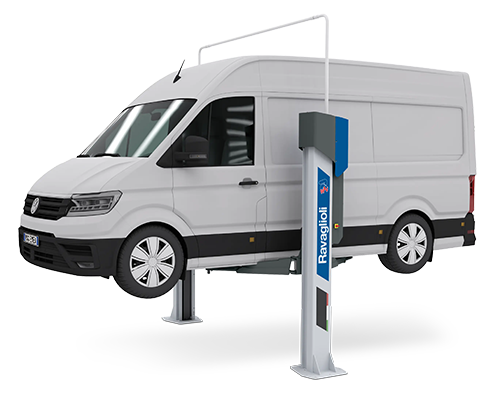

Ravaglioli KPX42 Baseless 2 Post Lift

A high quality European designed and built electro mechanical baseless 2 post lift with superior features.

Ravaglioli’s Legend Series: a blend of modern design and durability, tested for 20,000 cycles. Future-proof with TEq-Link connectivity, these 2-post lifts offer smart installation, ergonomic controls, and premium components. With a focus on efficiency and safety, they redefine workshop standards for today and tomorrow.

4200KG Lifting Capacity
Baseless design
Electro mechanical operation
3 phase
2 x 3 stage and 2 x 2 stage long arms
Lifting time: 58sec
Overall width: 3528mm
Minimum lifting height: 117mm

£5495.00 + VAT

P/No. : ravkpx42

Lease From £29.80 Per Week
Click Here for Details

Technical Specification

Lifting capacity	4200kg
Lifting time	58 seconds
Minimum height	117mm
Maximum lifting height	2042mm
Min ceiling height	4100mm
Front minimum / maximum arm length	525mm / 981mm
Rear minimum / maximum arm length	922mm / 1460mm
Motor size	3.5kw x 2
Power Requirements	400V - 50 Hz - 25 A
Operation	Electro-mechanical

Downloads

KPX42 Brochure

Call us now on 01823 328530 for more details
