Dama HDM6.0T/SB2H 2 Post Lift

Dama HDM6.0T/SBH 2 Post Lift

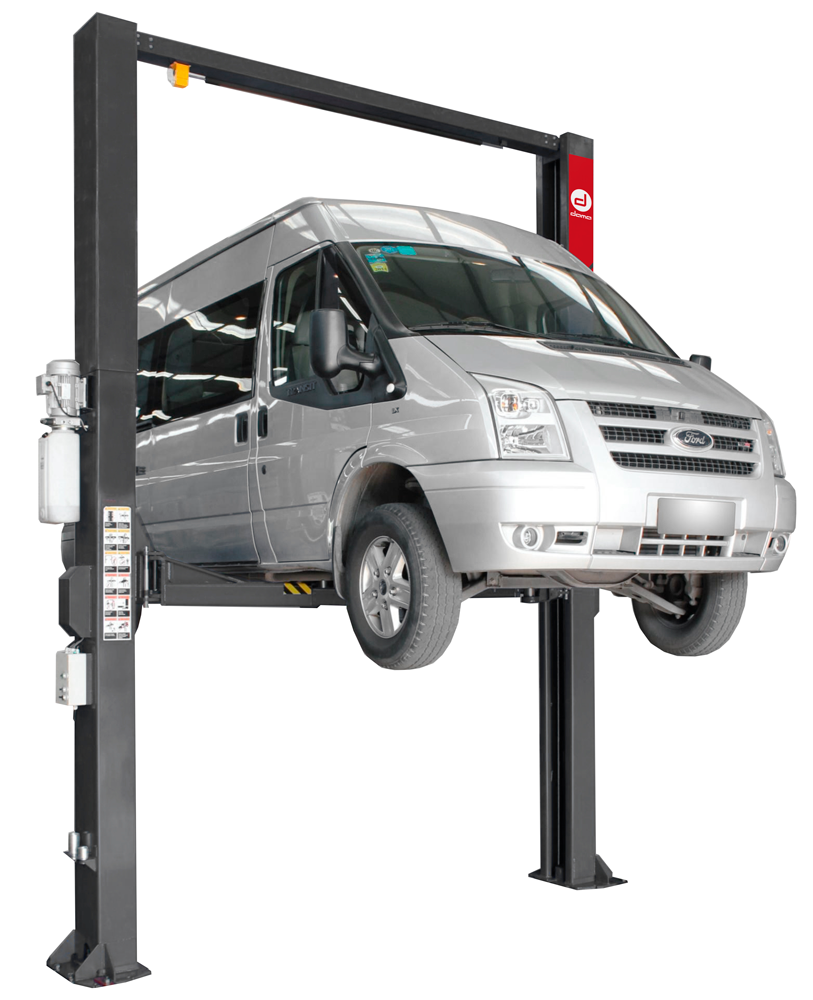

Dama HDM6.0T/SB2H 2 Post Lift

A very flexible design with a big lifting capacity.

A service lift with baseless design ideal where equipment needs to be manoeuvred beneath the lift. This lift has an inner height of 4230mm or 4530mm giving full flexibility of vehicles from large cars, 4x4’s and large vans to small trucks.

Comes complete with 3 stage long arms with a 1800mm length.

This 6 tonne lift has a huge lifting capacity at an amazingly low purchase price. Ideal for many light commercial workshops with 2 different height options. It can be installed at an external height of 4400mm or 4700mm.

Price includes delivery and installation.

Only £4995.00 + VAT
P/No. : hdm60tsb2h
QTY :
Lease From £27.09 Per Week
Click Here for Details

Features

  • 6T capacity
  • Electro hydraulic operation
  • Baseless design
  • 2 cylinder & chain drive
  • Synchronization steel rope
  • Electromagnetic lowering valve
  • Electric lock release
  • 2 height switches, one for car and one for carriage
  • 2 height options 4400mm or 4700mm
  • Min height 123mm - 178mm
  • 3 phase only
  • Comes with 4 x 67mm & 4 x 127mm extensions



Technical Specification

Maximum Lifting Weight 6000Kg
Lifting Time 50 seconds
Power Source 400V/3ph/50Hz/5.9A/3W .
Weight 1100 Kg
Warranty 14 Months

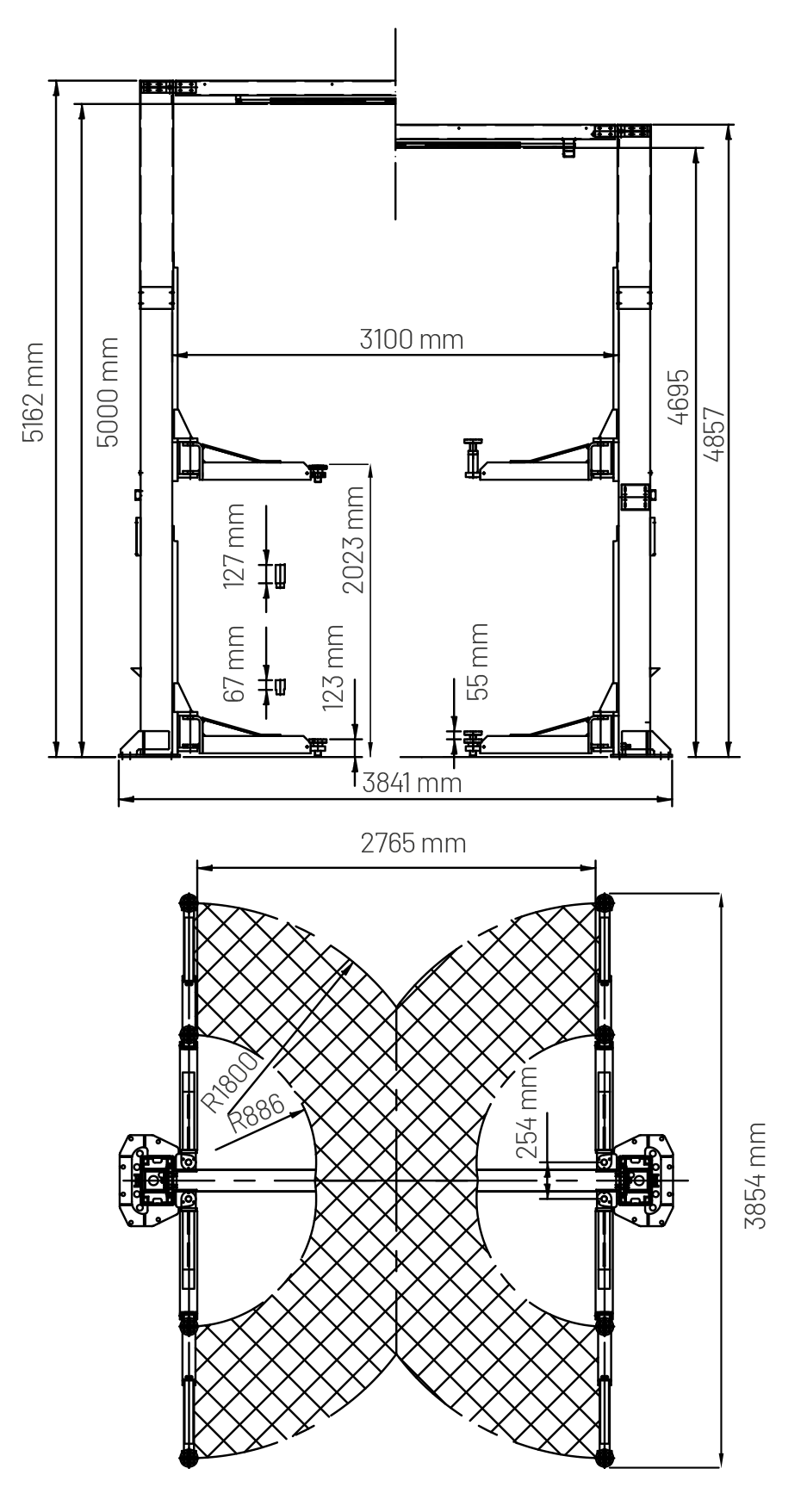

Drawings

Dama HDM6.0T/SBH 2 Post Lift

Call us now on 01823 328530 for more details
