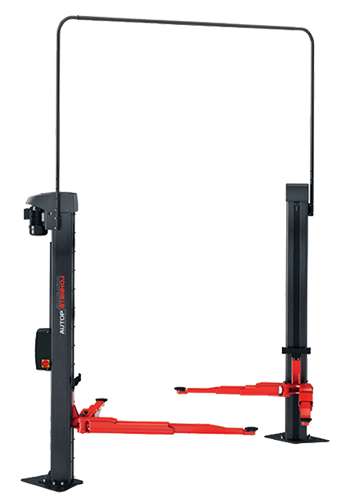

AutopStenhoj Maestro 2.32F NXT 2 Post Lift
AutopStenhoj Maestro 2.32F NXT 3.2 Tonne 2 Post Lift
The 2-post lifts of the Maestro 2.xx series impress with their premium construction.
They come with extremely stable and welded columns.
Smooth running behaviour is ensured by the rollerbearing carriage.
The cold-rolled spindle guarantees a particularly long service life.
The columns are asymmetrically positioned, i.e. vehicles can be positioned far to the rear, which ensures an optimal door opening angle. Of course, the Maestro 2.32 & 2.35 NxT also have door stop protection to prevent damage during entry and exit.
The swivel arms are extremely flat and thus ensure a low minimum height. The internal arm locking system with strong 360° interlocking protects against moisture and dirt.
AUTOPSTENHOJ Lifts are manufactured in Denmark.
Technical Specification
| Lifting capacity | 3200kg |
| Lifting / lowering time | 35 seconds / 35 seconds |
| Minimum height | 85mm |
| Maximum height | 1985-2015mm |
| Front minimum / maximum arm length | 540mm / 850mm |
| Rear minimum / maximum arm length | 900mm / 1425mm |
| Motor size | 2.8kw x 2 |
| Power Requirements | 2x 230/400V - 50 Hz - 25 A |
| Operation | Electro-mechanical |
