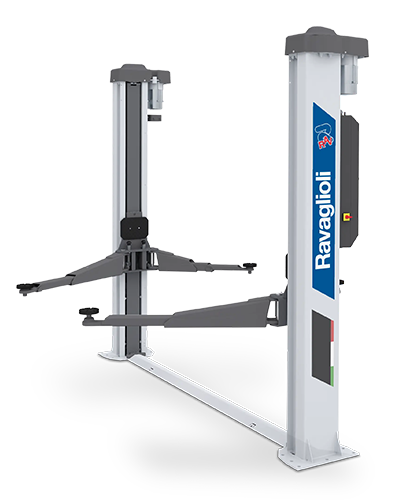

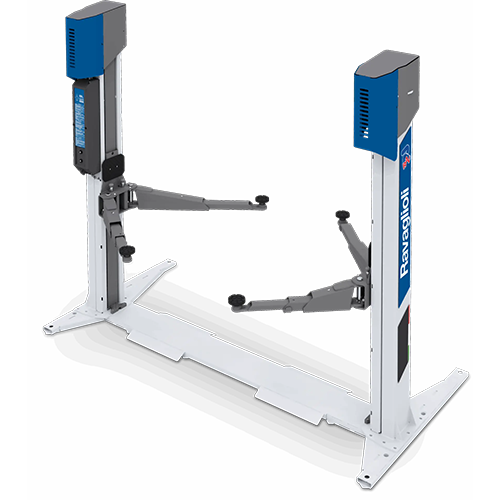

Ravaglioli KPS32 H-Frame 2 Post Lift
Ravaglioli KPS32 H-Frame 2 Post Lift
Ravaglioli’s Legend Series: a culmination of modern design and durability. The KPS32 is H-Frame base sits on its own support structure and is ideal where floors are not perfectly level or the base floor less than perfect.
- 3200KG Lifting Capacity
- Semi-base design
- Electro mechanical operation
- 3 phase
- Lifting time: 42sec
- Overall width: 3336mm
- Minimum lifting height: 110mm

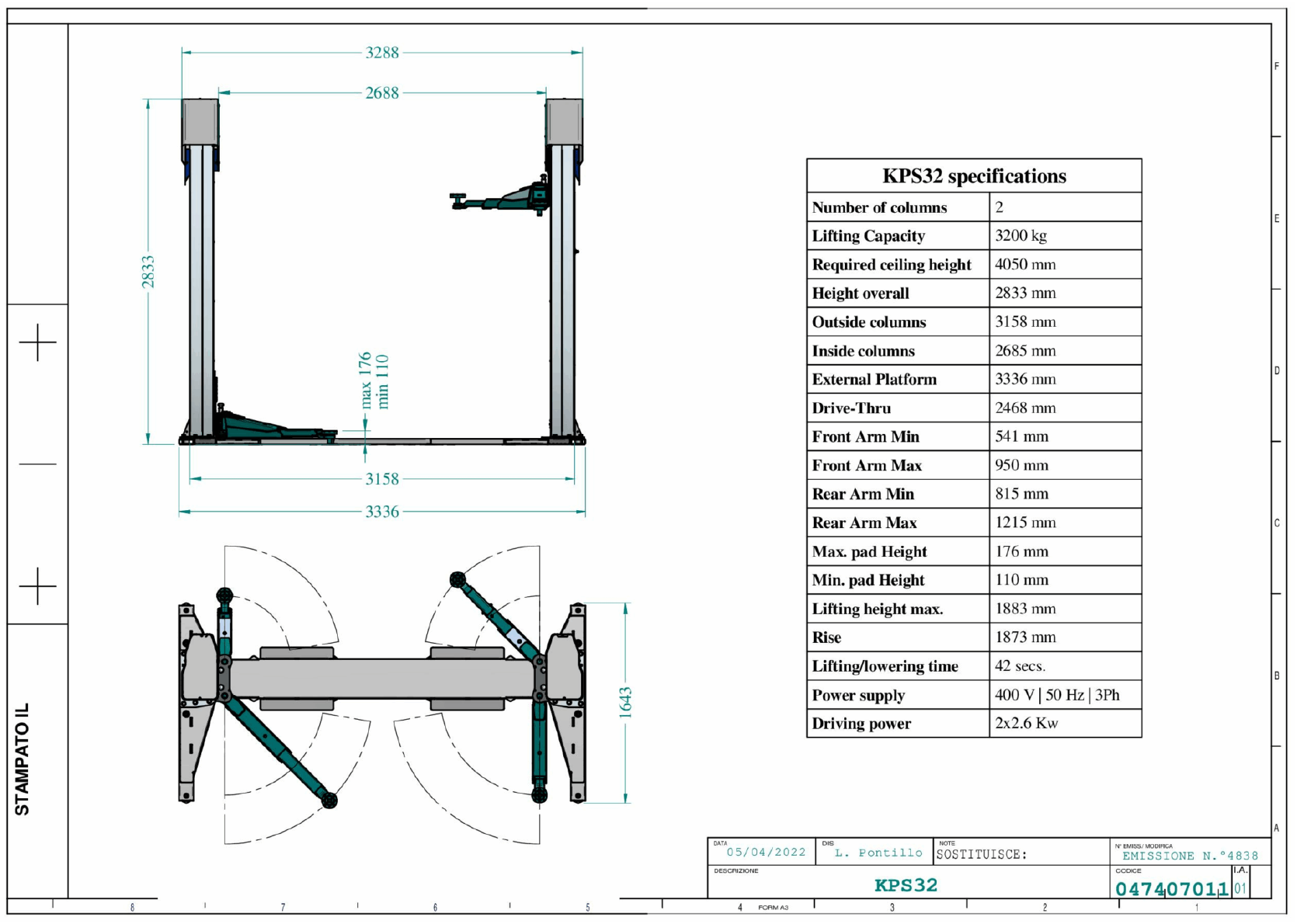

Technical Specification
| Lifting capacity | 3200kg |
| Lifting time | 42 seconds |
| Minimum height | 110mm |
| Maximum lifting height | 1883mm |
| Min ceiling height | 4050mm |
| Front minimum / maximum arm length | 541mm / 950mm |
| Rear minimum / maximum arm length | 815mm / 1215mm |
| Power Requirements | 400V - 50 Hz - 25 A |
| Operation | Electro-mechanical |
Downloads
Call us now on 01823 328530 for more details
