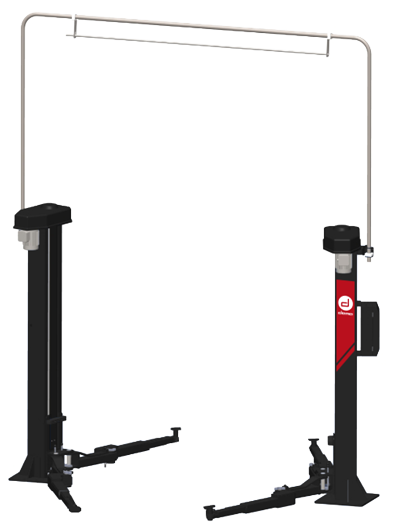

Dama HDM4.0EM 2 Post Lift
Dama HDM4.0EM 2 Post Lift
This new Electro mechanical (Nut & Screw) 2 post lift comes at an outstandingly low price and offers a 4t capacity with a twin motor baseless design.
The lift offers great flexibility of vehicle style from the triple extending front arms and twin rear arms. The twin 3.6kw electronically synchronised motors offers fine control, clear floor and an adjustable overhead cable hoop.
With a low minimum height of 85mm and lifting height of 1850mm. The lift is equipped with top and bottom safety switches as well as a max height trip bar.
Price includes delivery and installation.
Features
- Baseless Design
- 4000 kgs capacity
- Electromechanical operation
- Low minimum height of 85mm
- Lifting height of 1850mm
- Top limit switch for safety
- 3 phase only
- Optional 70 & 130mm extensions available
Technical Specification
| Maximum Lifting Weight | 4000Kg |
| Lifting Height | 85-1850mm |
| Overall Height | 4200mm |
| Power Source | 400V / 3ph 3.6Kw(x2) |
| Warranty | 24 Months |

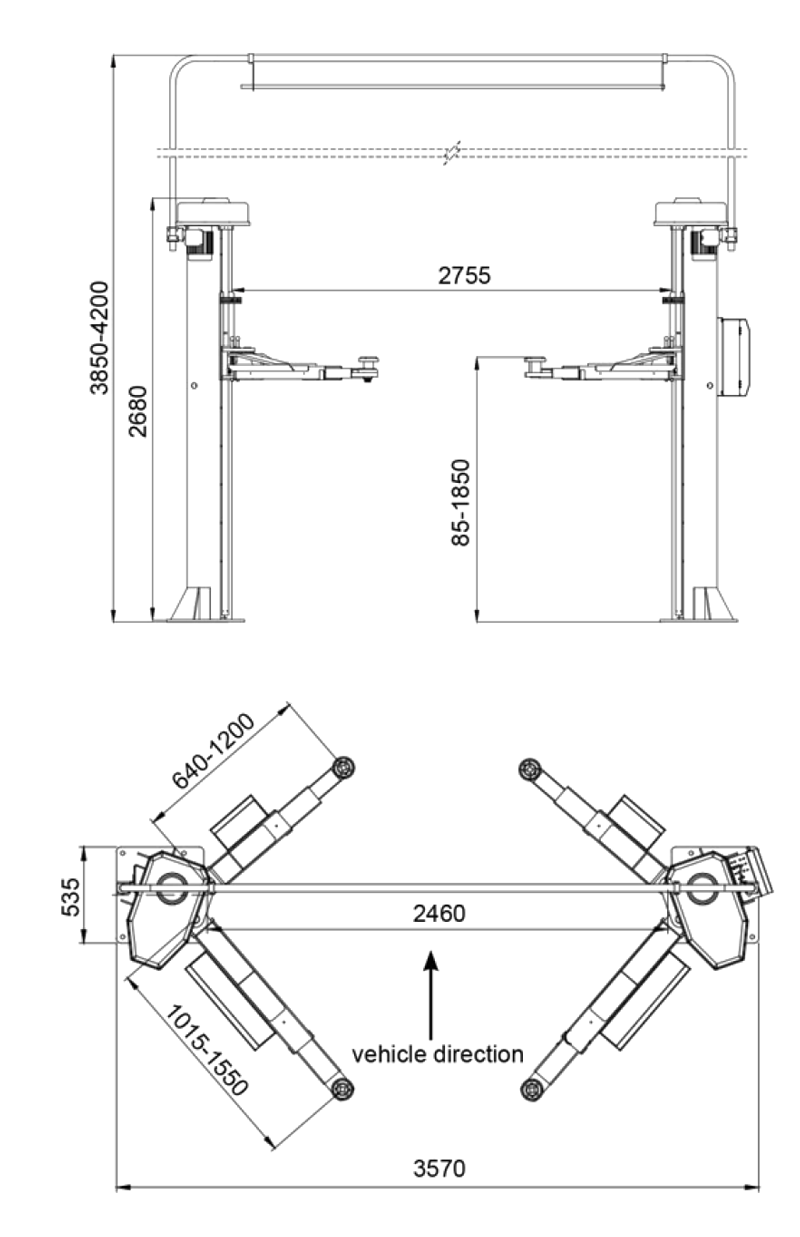

Drawings
Downloads
