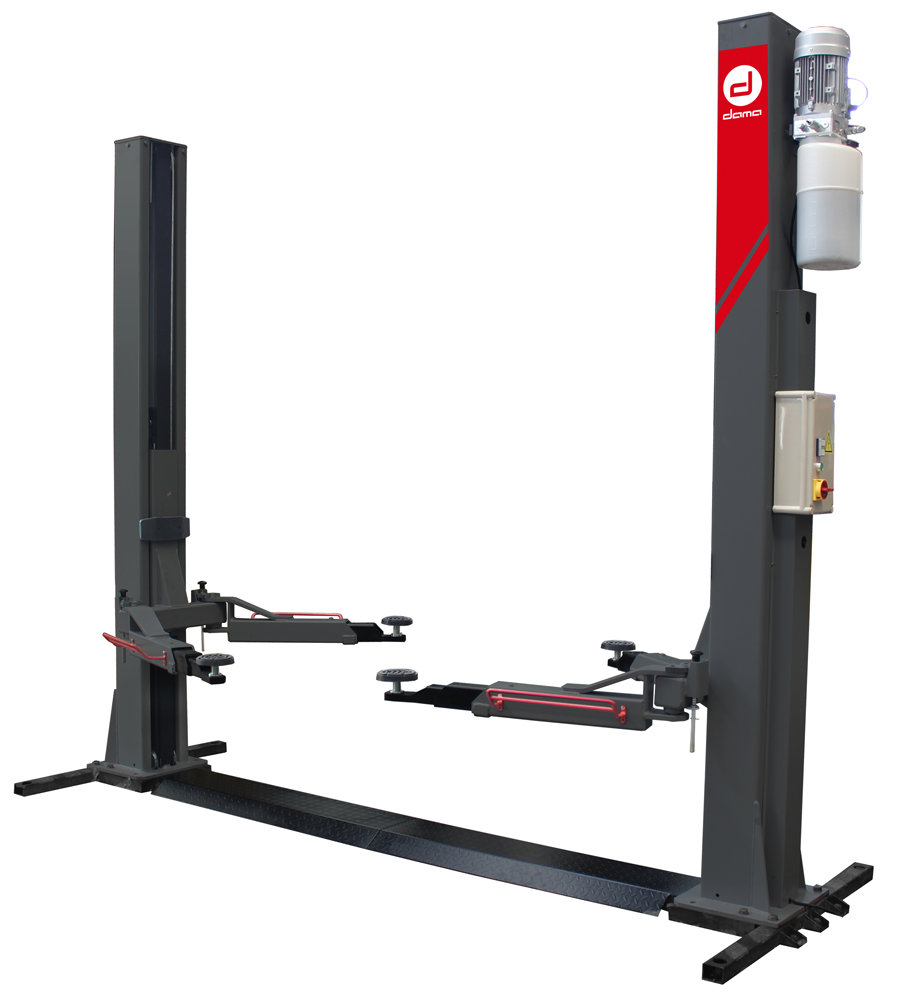

Dama HDM4.0T 2 Post Lift
Dama HDM4.0T 2 Post Lift
An ideal service lift with a lifting capacity of 4 tonnes, able to be installed on variable surfaces and an improved flexibility to maximum the range of vehicles able to be lifted.
4.0T comes complete with 4 x 3 stage arms and 80mm riser extension pads
Price includes delivery and installation.
Features
- 4T capacity
- 4 x 3 stage arms
- H base for better adaptation to all types of floors
- Adjustable pad min height 110-160mm
- Lifting time 60 seconds
- Electric lock release
- Available in Single & 3 phase
- 24 months warranty
Technical Specification
| Maximum Lifting Weight | 4000Kg |
| Maximum Lifting Height | 1820mm |
| Lifting Time 3 Phase | 60sec |
| Lifting Time Single Phase | 75sec |
| Lowering Time | 18 - 40 seconds |
| Net Weight | 700kg |
| Power Source | 220V / 1ph / 50Hz / 11.8A / 2.2KW 400V / 3ph / 50Hz / 4.31A / 2.2KW |
| Warranty | 24 Months |

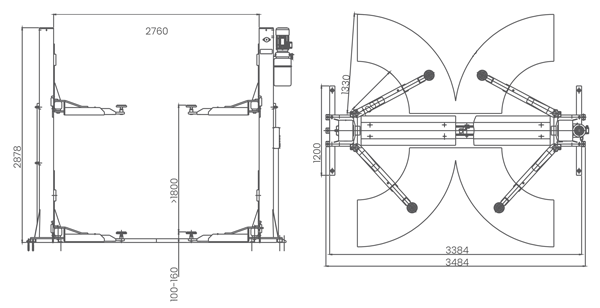

Drawings
Downloads
Optional add-on: Dama HDM20A Lifting Platform
Lifting platform that can be fitted to a selection of 2 post lifts to quickly convert to a agri lift and enable the lifting of quad-bikes, sweepers, lawnmowers etc.
Features
- 1.8t Lifting capacity
- Adjustable front beam
- Adjustable rear beam
Compatible with...
- HDM4.0T
- HDM4.0T/2
- HDM4.0T/SB2
