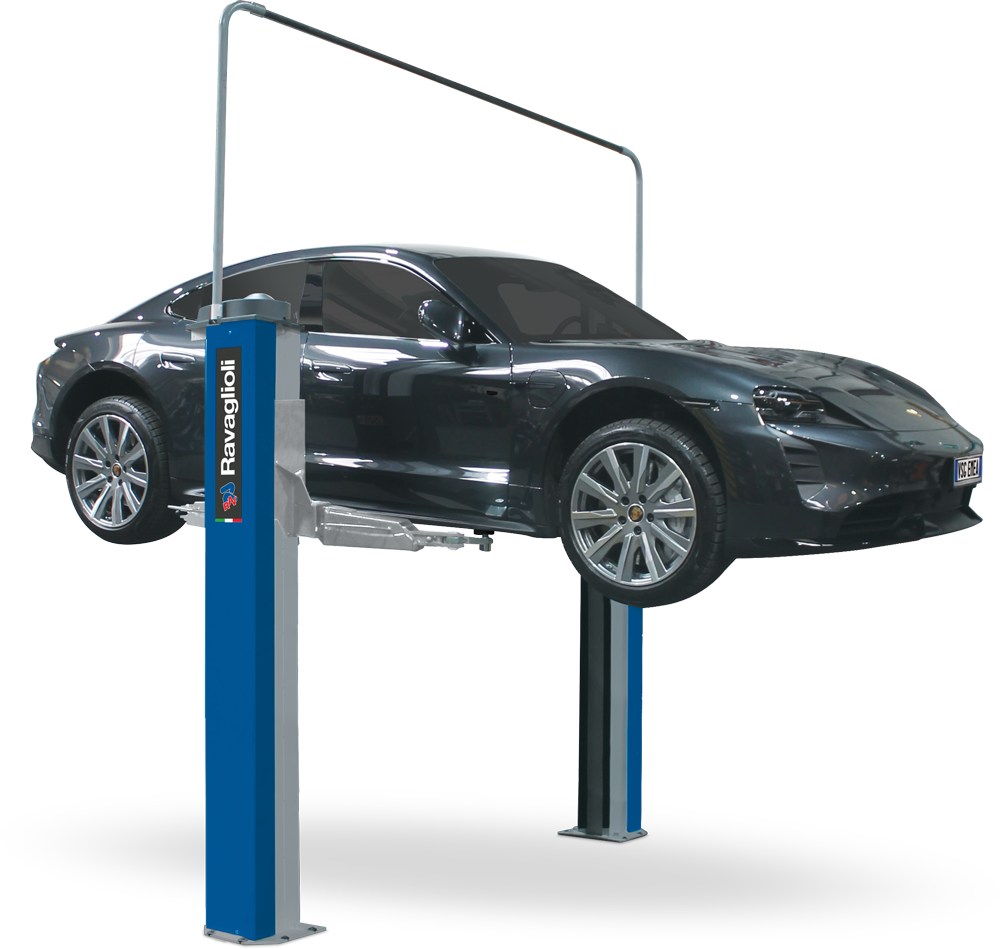

Ravaglioli KPX357EV 2 Post Vehicle Lift
Ravaglioli KPX357EV 2 Post Vehicle Lift
This electromechanical 2-post lift is an ideal solution for whoever wants to set up a universal work bay including the future EV vehicles.
The innovative low-profile arms with rotating terminal offer incredibly flexible use, making the lift suitable for lifting all types of vehicles - from the standard city cars to sports cars - including the most modern electric vehicles - up to the VW T6 with long wheel base.
The lift has an extra pivot in the arm which enables the vehicle to be lifted and EV batteries to be removed without interference of the arms.
The capacity of 3.5T gives excellent coverage of the heaviest vehicles.
£6370.00 + VAT
P/No. : ravkpx357ev
Technical Specification
| Lifting Capacity | 3500kg |
| Column distance | 2650 mm |
| Maximum height | 3876 mm |
| Minimum ceiling height | 3900 mm |
| Telescopic front arms | 3 stadi |
| Telescopic rear arms | 3 stadi |
| Min. length of rear/ front arms | 792 mm |
| Max. length of rear/ front arms | 1200 mm |
| Motor power | 2x2,6 Kw |
| Power supply | 230/400 V | 50 Hz |

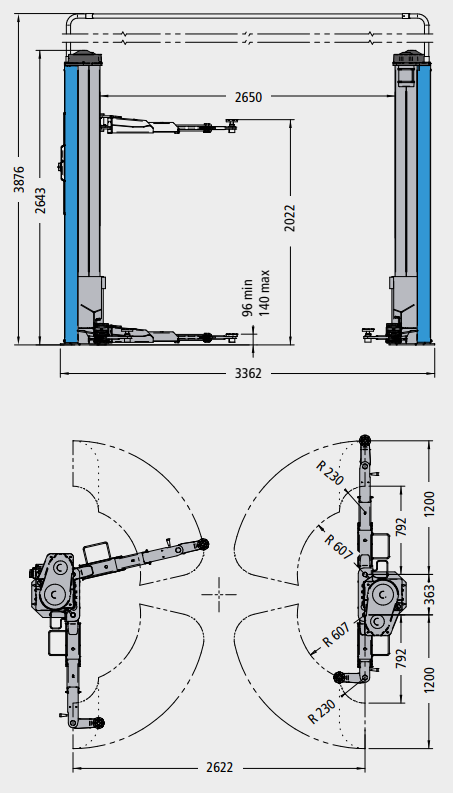

Drawing
