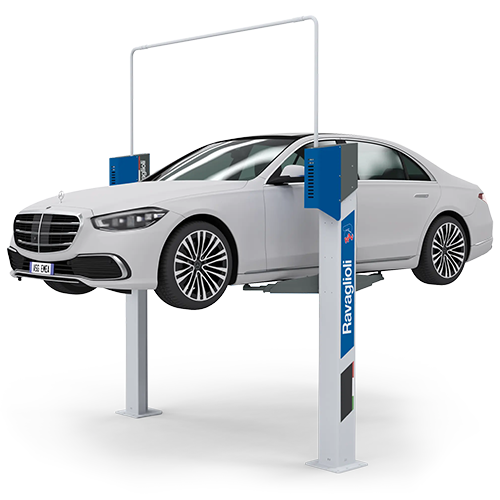

Ravaglioli KPX35 Baseless 2 Post Lift
Ravaglioli KPX35 Baseless 2 Post Lift
A high quality European designed and built electro mechanical baseless 2 post lift with superior features.
Discover Ravaglioli’s Legend Series: 2-post lifts blending modern design with durability. Tested for 20,000 cycles, they ensure safety and efficiency. Future-proof with TEq-Link connectivity, they offer hassle-free maintenance and flexible installation. From smart operations to advanced safety features, they redefine workshop efficiency and longevity.
- 3500KG Lifting Capacity
- Baseless design
- Electro mechanical operation
- 3 phase
- Lifting time: 42sec
- Overall width: 3350mm
- Minimum lifting height: 100mm
Technical Specification
| Lifting capacity | 3500kg |
| Lifting time | 42 seconds |
| Minimum height | 100mm |
| Maximum lifting height | 2020mm |
| Min ceiling height | 4150mm |
| Front minimum / maximum arm length | 564mm / 1160mm |
| Rear minimum / maximum arm length | 922mm / 1460mm |
| Motor size | 2.6kw x 2 |
| Power Requirements | 400V - 50 Hz - 25 A |
| Operation | Electro-mechanical |
