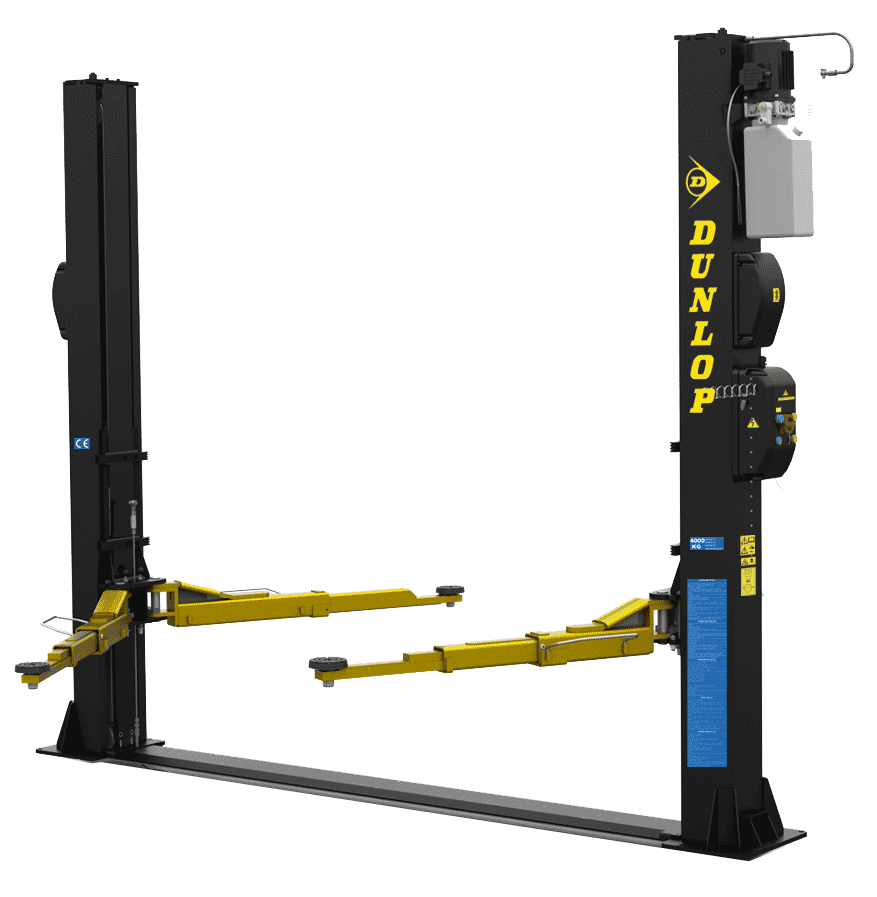

Dunlop DL240+ 2 Post Vehicle Lift
Dunlop DL240+ 2 Post Electro-hydraulic Lift
The Dunlop DL240+ is a solid 4 tonne electro-hydraulic two post lift. This lift is suitable for cars and vans (excluding LWB).
Two stage long rear arms and three stage short front arms all fitted with 95mm lifting pads. These key features help this lift to be one of the most versatile on the market.
This two post lift is electro-hydraulically operated and is available in single or three phase at no extra cost.
Technical Specification
| Lifting Capacity | 4000kg |
| Lifting/Lowering Time 1 / 3 phase | 40 seconds |
| Minimum Height | 95mm (screw adjustable) |
| Maximum Height | 1940mm |
| Front Minimum/Maximum Arm Lengths | 645mm/1300mm (3 stage) |
| Rear Minimum/Maximum Arm Lengths | 850mm/1400mm (2 stage) |
| Power Required | 1 or 3 Phase (16amp Isolator required) |
| Operation | Electro-hydraulic |
