Lifting Accessories

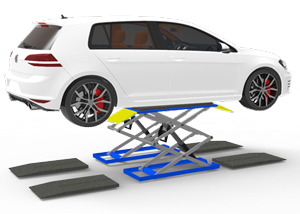

4 Post / Scissor Lift Rubber Riser Pads

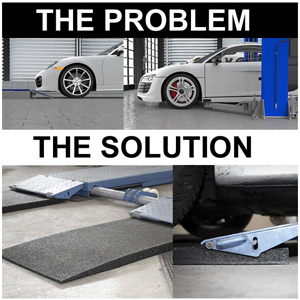

For use where a vehicle with low front spoiler or bodywork would be damaged using a surface mounted lift.

Cars with a very low chassis or vehicles with short wheel bases do not have enough space when driving on or over the lift. If the distance between the lift and the vehicle is so low that no rubber block can fit between the vehicle and the lift, the lift cannot be used.

Application 1: The ramps are placed in front of and behind the lift and allow the vehicle's approach angle to be reduced to avoid contact with the sill or underbody.

Application 2: The elevated position of the vehicle allows a rubber block or arm to fit between the lift and the vehicle. Safe lifting of the vehicle is then guaranteed. The products are made of high quality rubber granulate. Thanks to the high weight, the plates are firmly on the ground without having to be fixed.

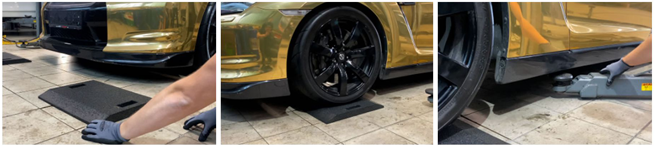

2 Post Lift Rubber Riser Pads

Low Profile Sports Cars Riser Ramp for use with 2 Post Lifts

Dimensions: 500 x 500 x 40mm

For use where a vehicle with low ground clearance or side skirts does not permit the 2 Post Lift Arm to be put into position.

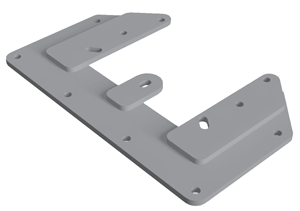

Weight Distribution Plates

For the installation of 2 column lifts on reinforced concrete floors with a minimum thickness of 14 cm and a hardness of B25.

The maximum recommended forces according to the calculation :

• N (max) = 18,25 kN
• Mx (max) = 11.50 kNm
• My (max) = 13.50 kNm

HDAMA0024

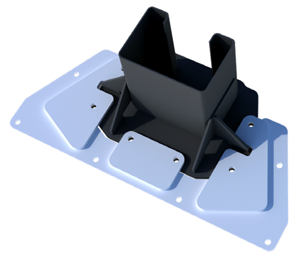

For the installation of 2 column lifts on reinforced concrete floors with a minimum thickness of 18 cm and a hardness of B25.

The maximum recommended forces according to the calculation :

• N (máx) = 33,84 kN
• My (máx) = 38,92 kNm
• Mx (máx) = 20,00 kNm

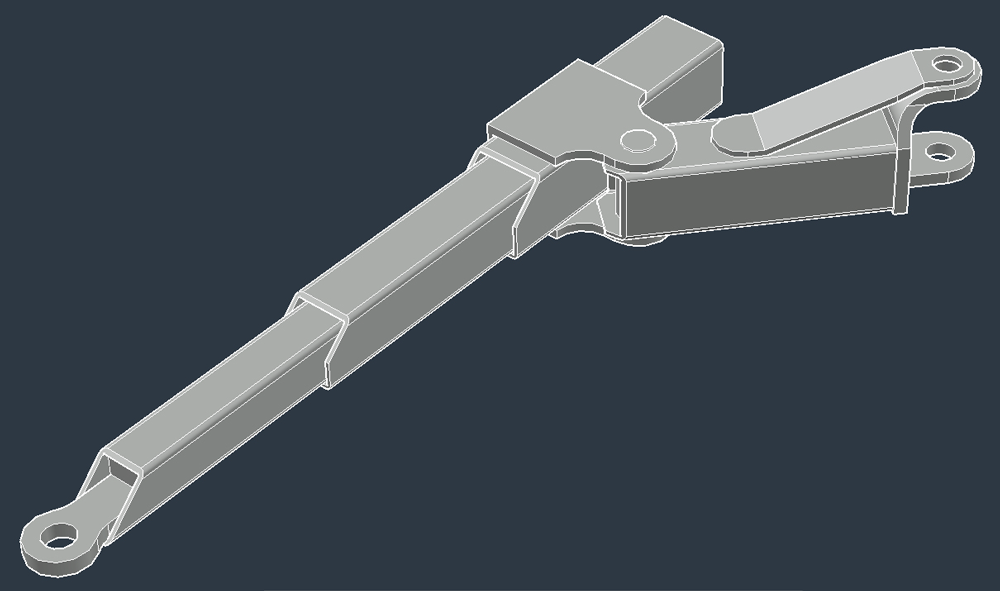

Articulated Arm

• For better access for battery-powered vehicles
• Compatible with models DM4.0T/2 and DM4.0T/SB2
