Dama HDM5.0T/1 2 Post Lift
Dama HDM5.0T/1 2 Post Lift

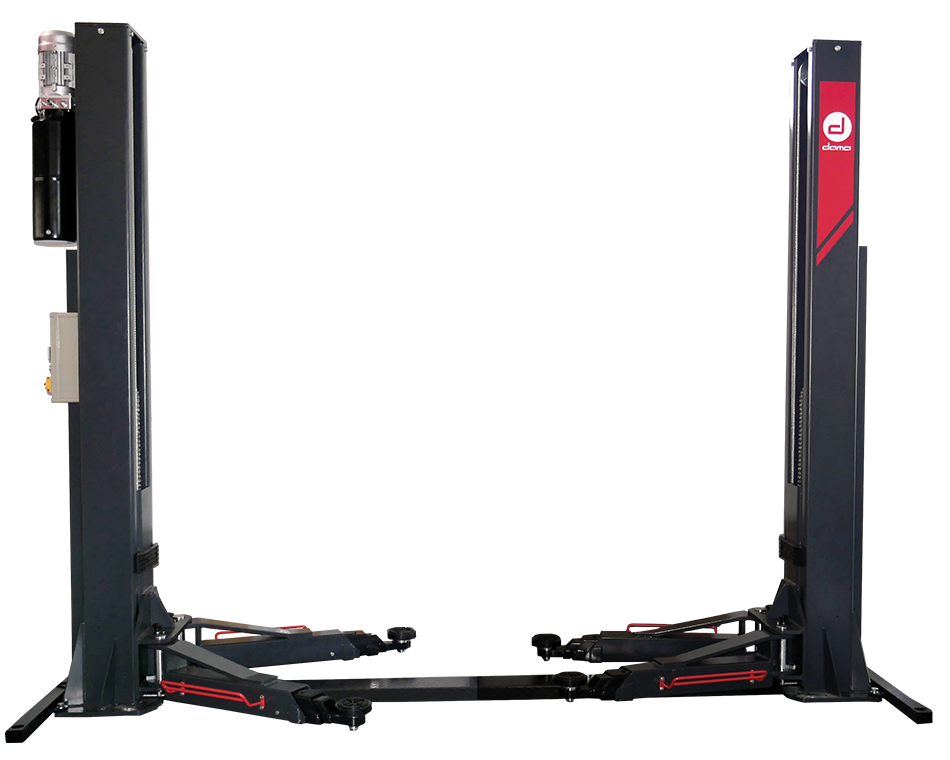

A superb lift for garages that need to carry out repairs on 4x4s, larger vans & motorhomes. The semi base design offers a small cover between posts and side bracing arms for maximum rigidity.
Needing no overhead bars the lift is completely clear above which is ideal for working on varying sizes of vehicle and also perfect for garages with restricted height.
The HDM5.0T/1 has triple extending arm that have an impressive reach from 886mm to 1800mm on each arm and pick up pads that start at 110mm and adjust to 150mm.
Available in 3 phase only
Price includes delivery and installation.
Features
- 5t lifting capacity
- Electro hydraulic operation
- Semi base design with side braces
- Electronic lock release
- Triple extended arms 886mm to 1800mm
- Lifting time 60 seconds
- Pad height min 110mm max 150mm
Technical Specification
| Maximum Lifting Weight | 5000Kg |
| Power Source | 400V / 3ph 3.0Kw |
| Warranty | 24 Months |

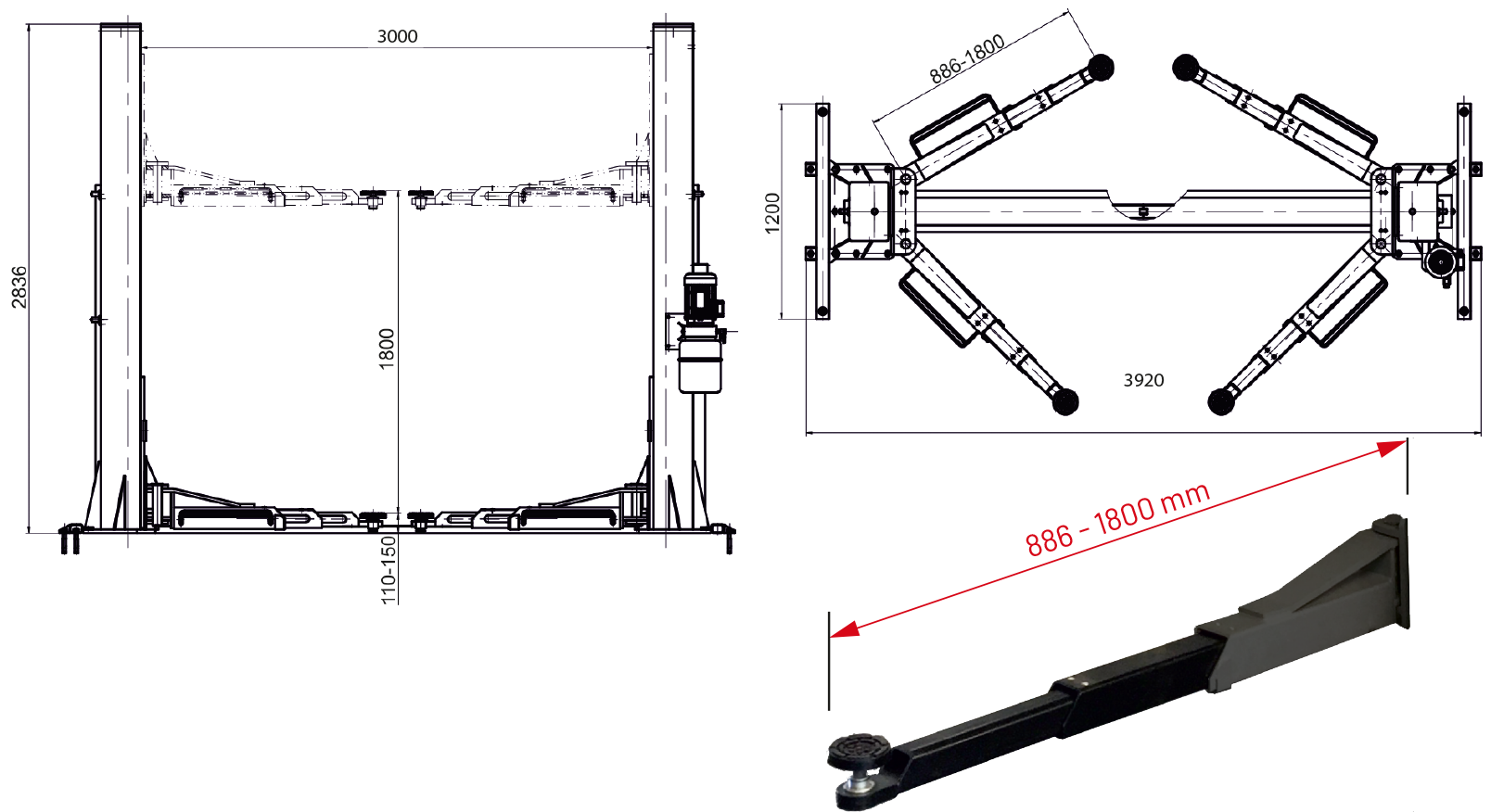

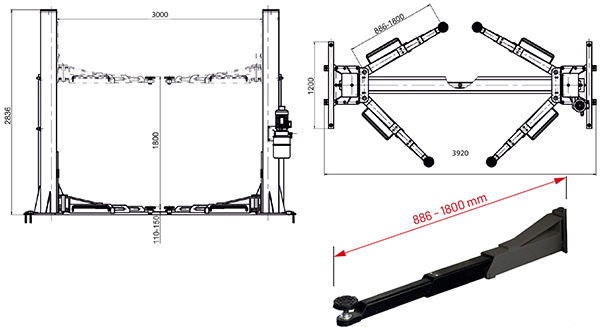

Drawings
Call us now on 01823 328530 for more details
