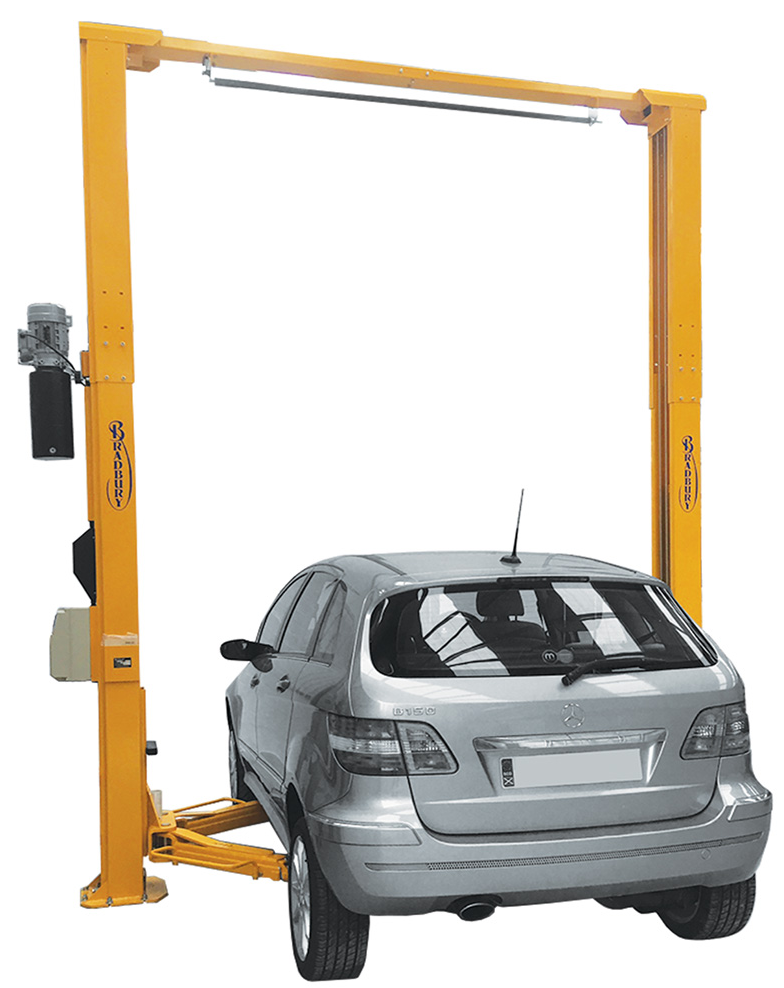

Bradbury H2403G 2 Post Vehicle Lift
Bradbury H2403G 2 Post Vehicle Lift
The Bradbury H24 series of twin-ram two post lifts are fully baseless with over head gantries making them ideal for moving transmission jacks and oil drainers beneath the vehicle.
Featuring a low pad height of just 95mm these lifts are suitable for most makes and models of cars and small vans.
Two models of the H24 series are available;
H2403G – Gantry height of 3800mm (drive under clearance)
H2403HG – Gantry height of 4200mm (drive under clearance) also features longer front arms versus the standard G version.
Available in both single and three phase.
**Please note that the colour may vary from that shown in the picture, new colours for 2021 are Grey RAL7016 with yellow Bradbury Decals**
Baseframe version (without over head gantry) also available.
Technical Specification
| Lifting Capacity | 4000kg |
| Lifting/Lowering Time | 50 seconds / 40 Seconds |
| Minimum Height (pad) | 95mm - 140mm |
| Maximum Height | 1845mm - 1890mm |
| Front Minimum/Maximum Arm Lengths | 610mm / 1077mm (G) / 840mm – 1452mm (HG) |
| Rear Minimum/Maximum Arm Lengths | 840mm / 1452mm |
| Motor Size | 1 Phase (1.5kW) / 3 Phase (1.85 kW) |
| Power Requirements | 1 phase – 20a Isolator Required, 3 phase – 16a Isolator Required |
| Operation | Electro-hydraulic |
