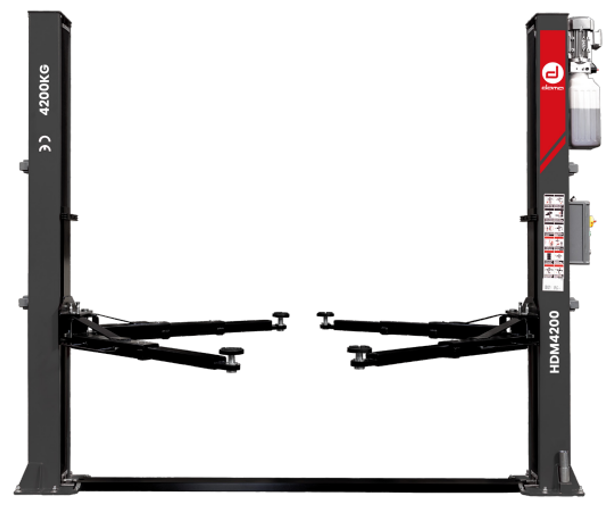

Dama HDM4200N Narrow 2 Post Lift
Dama HDM4200N Narrow 2 Post Lift
Based on the successful HDM4200 4.2t 2 post this narrow version is ideal to fit into small bays, narrow spaces or to replace older smaller lifts.
With an outside of post measurement of only 3050mm it is one of the narrowest on the market but retains the 4t lifting capacity. The adapted arm configuration includes 2 x double and 2 x triple extensions for maximum flexibility.
Price includes delivery and installation.
To Order - Call NOW on 01823 328530
Features
- 4.2T capacity
- Small drive over floor frame
- Electro-hydraulic operation
- Electronic locking system
- Twin cylinder & chain system
- Shorter double and triple stage arms
- Single & 3 phase
- 24 months warranty
- Includes 4 x 65mm extensions
Technical Specification
| Maximum Lifting Weight | 4200Kg |
| Lifting Time | 45 secs |
| Lowering Time | 65 secs |
| Power Source | 230V / 1ph / 50Hz / 2.2KW 400V / 3ph / 50Hz / 2.2KW |
| Warranty | 24 Months |

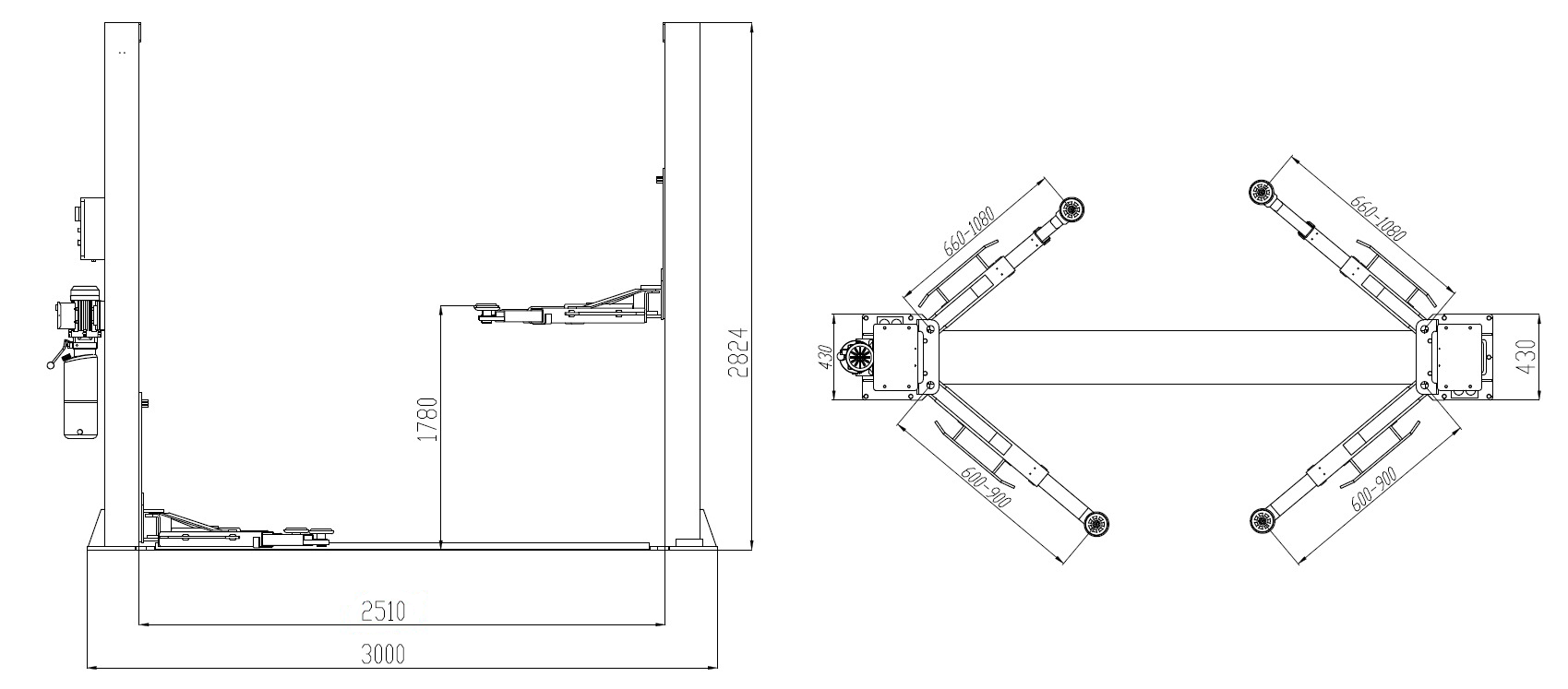

Drawings
Downloads
Call us now on 01823 328530 for more details
