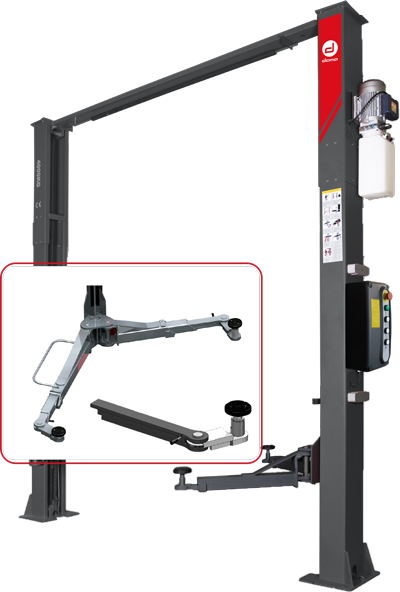

Dama HDM4.0T/SB2EV 2 Post Lift
Dama HDM4.0T/SB2EV 2 Post Lift
Based on the popular 4.0T SB2 with the addition of a set of special arms ideal for EV lifting & battery replacement by providing better access to the vehicle.
Includes 4 x 115mm pads and 4 x 70mm extensions.
Available in single or 3 phase.
Price includes delivery and installation.
Features
- Baseless design
- Electro-hydraulic operation
- 4000kgs capacity
- Includes 115m pads & 70mm extensions
- 3 stage EV arms
- Available in single or 3 phase
- 2 year warranty
- Optional 30cm & 50cm top extensions to increase headroom
Technical Specification
| Maximum Lifting Weight | 4000Kg |
| Lifting Time | <45 seconds |
| Lowering Time | <45 seconds |
| Power Source | 230V / 1ph or 400V / 3ph 2.2Kw |
| Net Weight | 673Kg |
| Warranty | 24 Months |

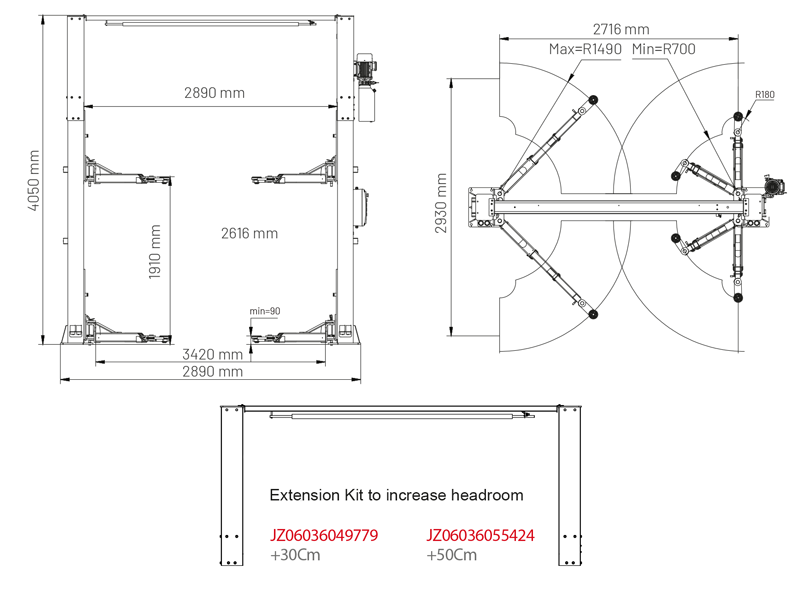

Drawings
Downloads
Call us now on 01823 328530 for more details
