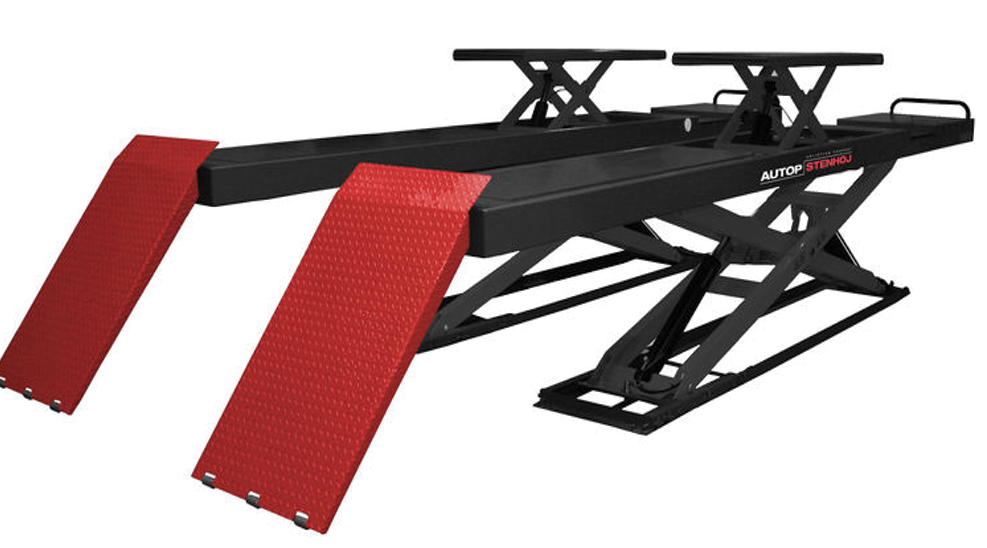

Stenhoj Magix 50 Scissor Lift

Stenhoj Magix 45 4.5T Scissor Lift

Stenhoj Magix 50 5.0T Scissor Lift

The AUTOPSTENHOJ MagIX 50 Series of scissor lifts compromises of four different models with three choices of platform lengths. These lifts have an impressive lifting capacity of 5 tonnes.

As with all other AUTOPSTENHOJ scissor lifts, these lifts are electro-hydraulically operated and are fitted with a clever safety device should a pipe burst. In addition all models include LED lighting, recessed drive over ramps (suitable for recessed in-ground applications), end stops, hose covers and expansion bolts.

ALL AUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.

Only £16995.00 + VAT
P/No. : stenmagix45
Lease From £92.17 Per Week
Click Here for Details

Features

WL versions for wheel alignment also feature a special locking device (parking mechanism) for accurate wheel alignment.

The four models to choose from are as follows :

  • SI model – Standard flat platforms (no integral/secondary lifting)
  • SI Combi model – Standard flat platforms with integral/secondary lifting
  • WLI model – Wheel alignment model with rear slip plates and front recesses for turn plates (turn plates excluded) without integral/secondary lifting
  • WLI combi model – Wheel alignment model with rear slip plates and front recesses for turn plates (turn plates excluded) with integral/secondary lifting

Technical Specification

Lifting Capacity  5,000kg
Lifting/Lowering Time  55 seconds
Platform Height 340mm
Maximum Height  1810mm
Platform Length  4500mm or 4800mm or 5200mm
Platform Width  660mm
Jacking beam rails Yes
Overall width of lift  2120mm – 2320mm
Motor Size 3kw
Power Required 3 phase (16amp isolator required)
Operation Electro-hydraulic

Call us now on 01823 328530 for more details
