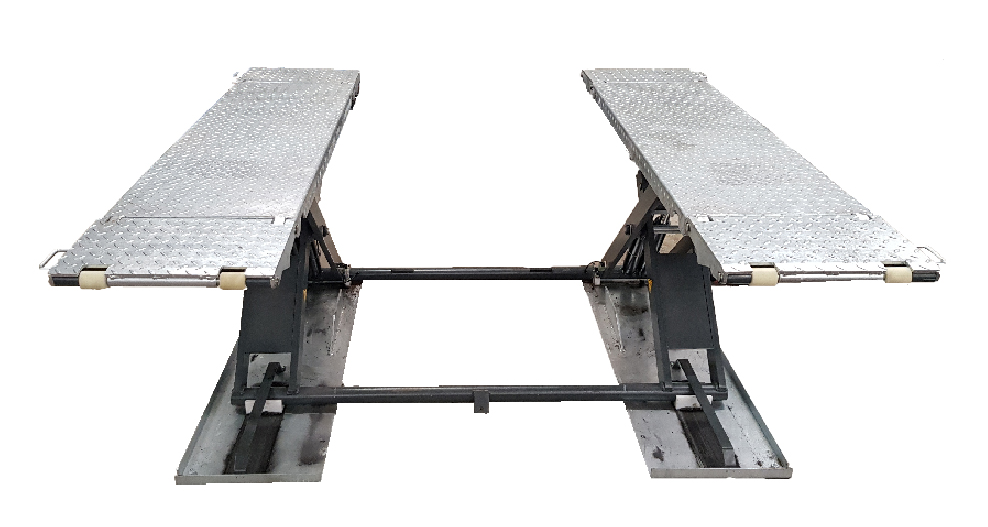

Stenhoj Magix 35 LSMG Scissor Lift
Stenhoj Magix 35 LSMG 3.5T Scissor Lift
The AUTOPSTENHOJ MagiX 35 LSMG low rise scissor lift is the ideal choice for tyre service bays. This lift is equipped with a double master slave system which prevents uneven raising of the platforms and unintentional lowering in case of a leakage in the hydraulic system.
This lift can be fixed or mobile.
ALL AUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
Technical Specification
| Lifting Capacity | 3500kg |
| Lifting / Lowering Time | app 20 seconds |
| Minimum Height | 105mm |
| Maximum Height | 960mm + Rubber Pads |
| Platform Length | 1,490mm – 1,974mm |
| Ramps fixed to extend platform | Yes (2030mm) |
| Motor Size | 1 x 2.2kw |
| Power Required | 3 phase (16amp isolator required) |
| Operation | Electro-hydraulic |
