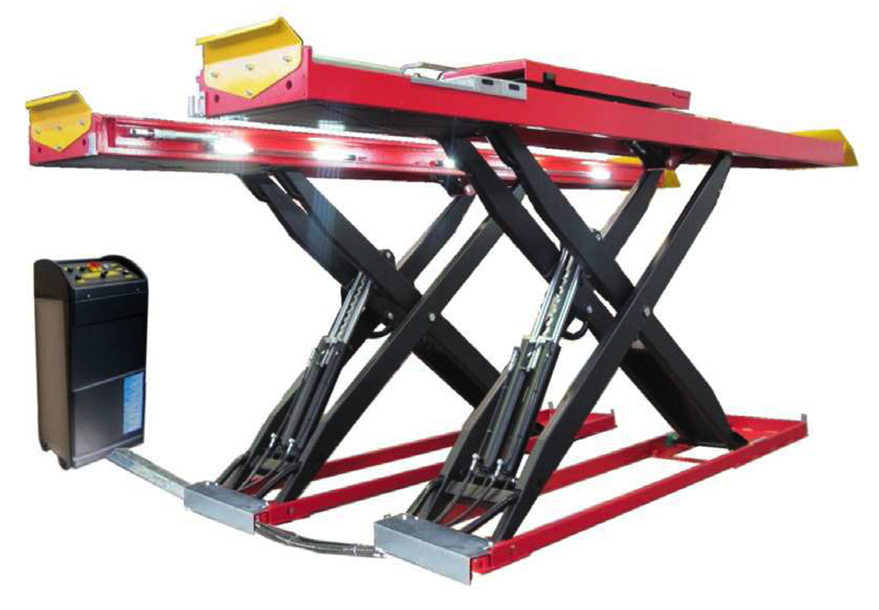

Gemco Class IV ATL Scissor Lifts

Gemco Class IV Scissor Lift

Gemco Class IV ATL Scissor Lifts

The GEMCO GEMATL Class IV ATL Scissor Lifts are ideal for workshops with limited space. Ideal for tyre and car body shops, allowing full access to all sides of the vehicle.

This scissor lift is electro-hydraulically operated and capable of lifting vehicles up to 4.5 tonnes or 5.0 tonnes.

ALL AUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.

AUTOPSTENHOJ Lifts are manufactured in Denmark

P/No. : gem4atl
P/No. : gem5atl

Features

  • Hydraulic platform synchronisation
  • 2 Independent hydraulic circuits
  • Overload safety valve
  • Safety valve in the event of pressure loss
  • Manual descent system in the event of power failure
  • 24v ‘dead man’ controls
  • Rails for jacking beam
  • Jacking beam
  • Hose extensions (1m/ 2m)
  • Crosspieces for special vehicles
  • INVERTER

Technical Specification

  GEM4ATL GEM5ATL
Lifting Capacity 4500 kg 5000 kg
Lifting / Lowering time 40 seconds / 30 seconds 40 seconds / 30 seconds
Platform length 4800mm 5200mm
Lifting height 2100mm 2100mm
Minimum height 330mm 330mm
Air requirement 6-8 bar 6-8 bar
Motor size 4kW 4kW
Power requirement 6-8 BAR 6-8 BAR
Motor size 4kW 4kW
Phase 3 Phase (16a Isolator Required) 3 Phase (16a Isolator Required)
Operation Electro-hydraulic Electro-hydraulic

Call us now on 01823 328530 for more details
