Dama HDM3.5MV Scissor Lift
Dama HDM3.5MV Scissor Lift

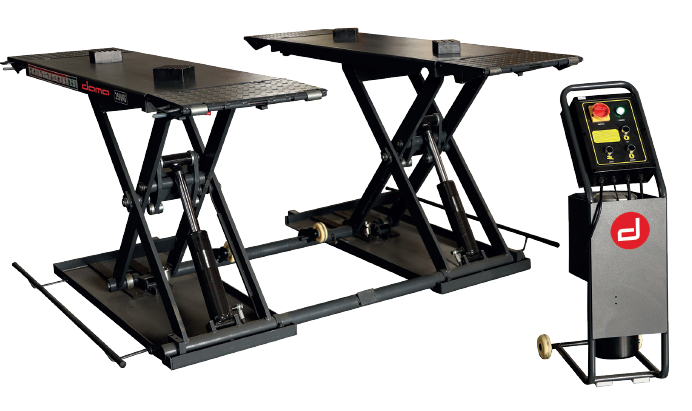

The HDM3.5MV is a powerful 3.5t capacity mobile scissor lift giving that extra capacity over the 3t version but still retaining the same dimensions that make it perfect for all vehicle sizes.
The 3.5t capacity is ideal for the ever increasing weights of vehicles, lifting heavy SUV’s, vans, hybrid & EV cars plus larger passenger cars. Lifting from 110mm to 1000mm the MV range is ideal in bodyshops, tyreshops, inspecting bays and anywhere where you have spare space around the garage.
Either leave it in one place or move it effortlessly around the garage the choice is yours.
Price includes delivery and installation.
Features
- Low profile operation platform
- 2 cylinders structure, synchronization system
- Mechanical safety lock at different heights. Pneumatic release system
- Portable pump station. Flexible and convenient
- Movable devices, easy to use
- No installation required
- Limit switch
- Electric locking device. No air supply needed
Technical Specification
| Maximum Weight | 3500Kg |
| Maximum Height | 1000mm |
| Minimum Height | 110mm |
| Lifting Time | 30 seconds |
| Total Width | 1760mm |
| Distance between Platforms | 700mm |
| Motor Power | 2.2Kw |
| Weight | 605Kg |
| Warranty | 24 Months |
Drawings
Downloads
