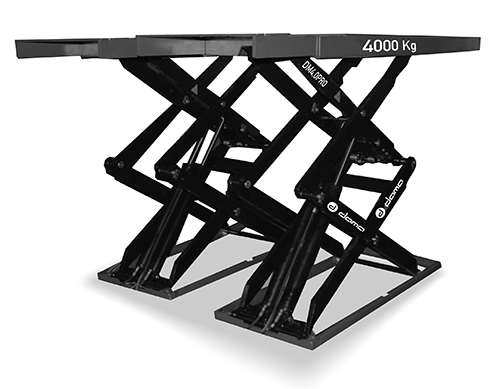

Dama HDM4.0PRO Scissor Lift
Dama HDM4.0PRO Scissor Lift
Scissor lift for recessed installation. Also compatible for surface installation including access ramp kit. Low profile with minimum height 120 mm. Double platform extension. 3 phase, 4T capacity.
Features
- Three Phase
- 4 tonne Capacity
- Scissor lift for recessed installation
- Compatible for surface installation including access ramp kit
- Flat structure, minimum height 120 mm
- Safety by means of double hydraulic circuit
- Double platform extension
- Limit switch micro switches
All prices include delivery and installation.
To Order - Call NOW on 01823 328530

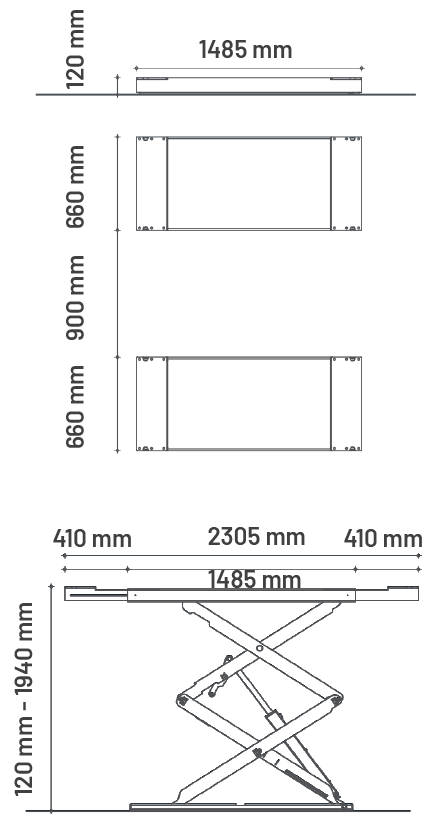

Technical Specification
| Maximum Lifting Weight | 4000Kg |
| Platform Length | 1485-2305mm |
| Minimum Height | 120mm |
| Maximum Height | 1840mm |
| Lifting Time | 60s |
| Weight | 840KG |
| Power Source | 400V / 3ph / 50Hz / 2.2KW |
| Warranty | 24 Months |
Downloads
