Dama HDM3.0 Scissor Lift
Dama HDM3.0 Scissor Lift

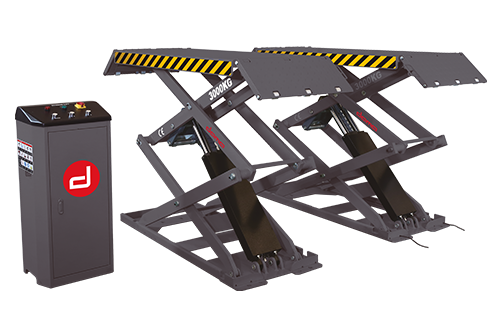

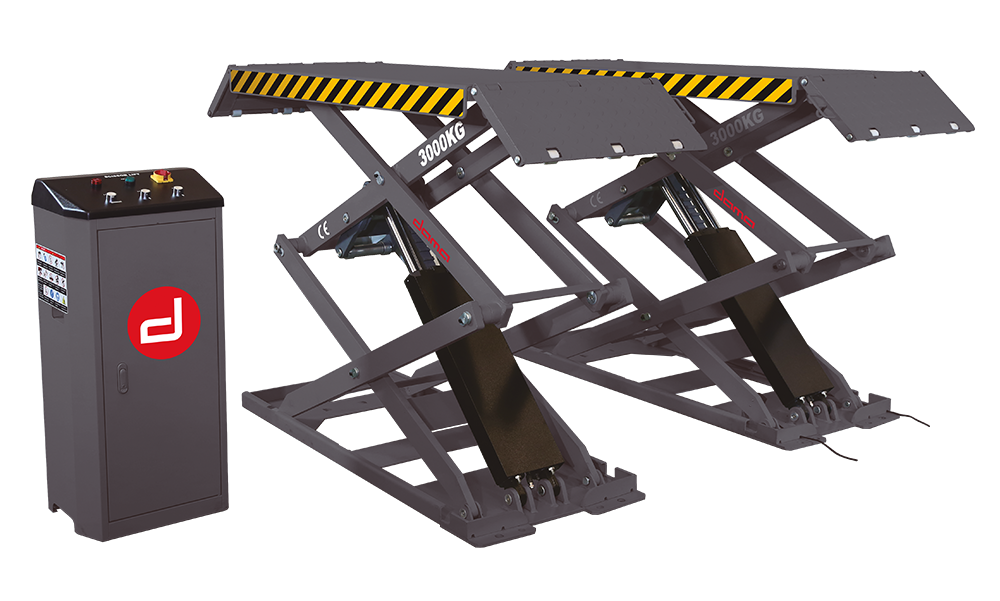

This full height scissor lift is designed to be surface mounted, due to its flat structure the lift is only 110mm when down.
The lift has a 3 tonne lifting capacity and extendable platforms from 1450mm to 2050mm. With a lifting time of only 55 seconds this is an ideal option for limited space areas with the minimum of installation required.
Available in single or 3 phase
Price includes delivery and installation.
Features
- Surface installation.
- Flat structure, lowest height is 110 mm
- Extension pads for various types of vehicles.
- Pneumatic safety ratchet construction
- Run-on-ramps can be locked in horizontal position.
Technical Specification
| Load Capacity | 3000Kg |
| Lifting Height | 1920mm |
| Length of Platform | 1450-2050mm |
| Width of Platform | 635mm |
| Power Supply | 1ph 220V 50Hz or 3ph 400V |
| Lifting Time | 55 seconds |
| Down Time | 55 seconds |
| Overall Width | 2030mm |
| Warranty | 24 months |

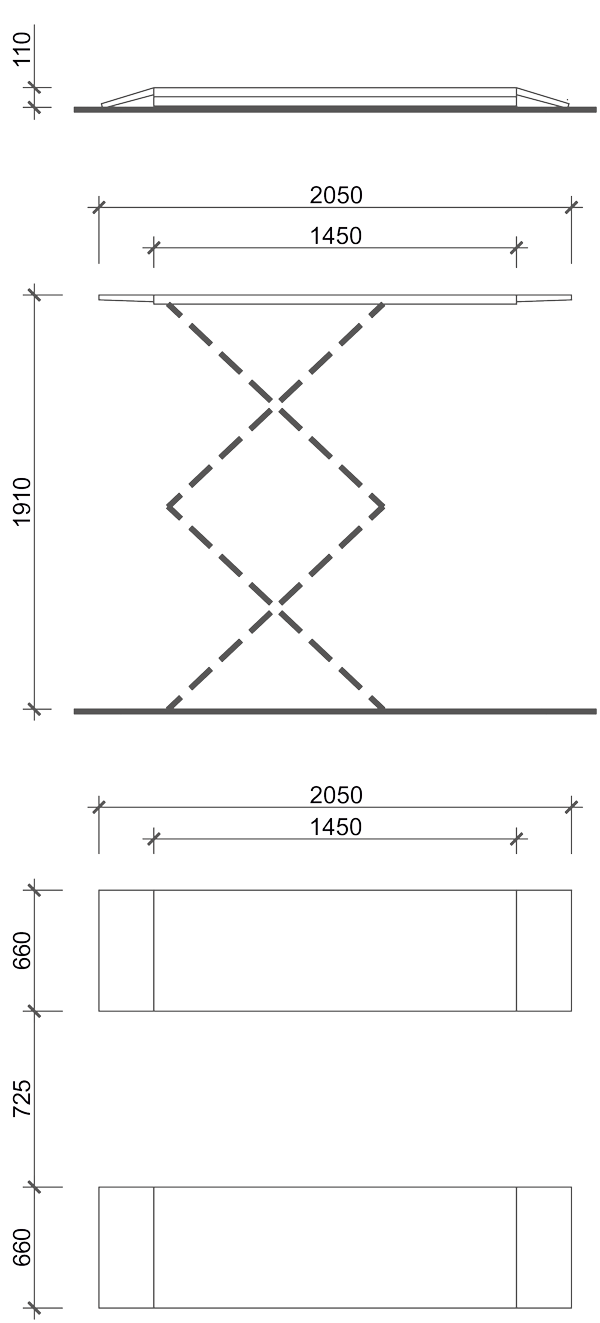

Drawings
Call us now on 01823 328530 for more details
