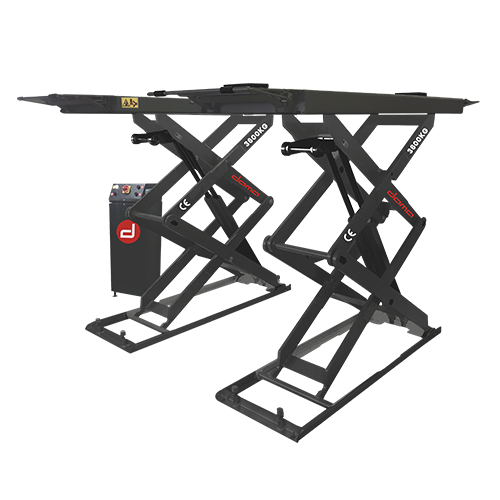

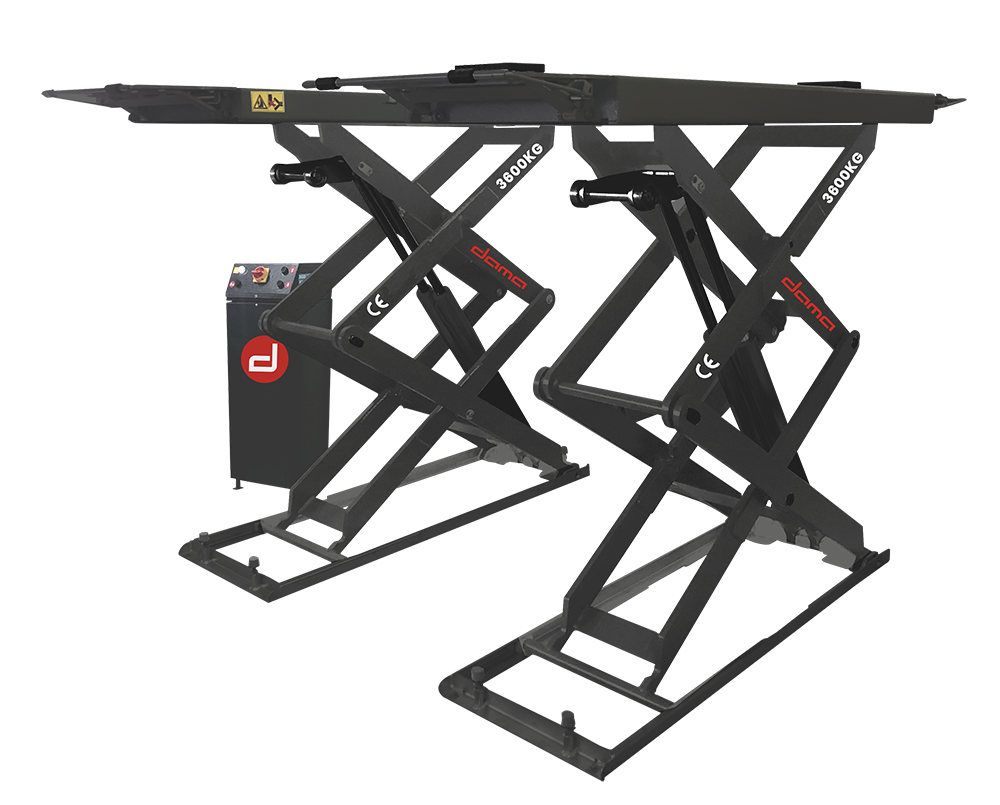

Dama HDM36PRO Scissor Lift
Dama HDM36PRO Scissor Lift
A high quality European manufactured electro-hydraulic 3.6 tonne scissor lift for surface installation, which lifts to a height of 2040mm.
Hydraulic locking by 2 independent circuits.
Features
- Electro-hydraulic
- Floor installation
- High capacity 3600 kg
- Max height 2,04 m
- Quick Installation
- No electrical whire in the lift platform
- Automatic leveling
- Hydraulic locking/2 indepedient hidraulic circuits
- Anti toe trap function
- Min height 110mm
- Run on ramps can be locked in horizontal position
Technical Specification
| Capacity | 3600 Kg |
| Lifting Time | 40 secs |
| Lowering Time | 40 secs |
| Weight | 800 Kg |
| Power Supply | 3 KW / 400 V / 3 PH / 50 Hz |
| Warranty | 24 Months |

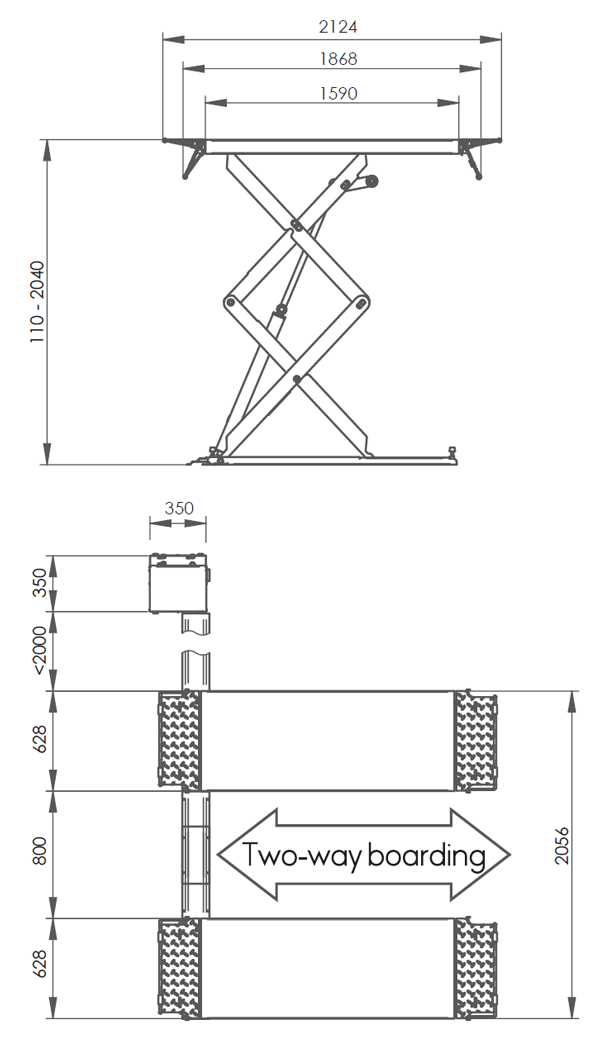

Drawings
Downloads
Call us now on 01823 328530 for more details
