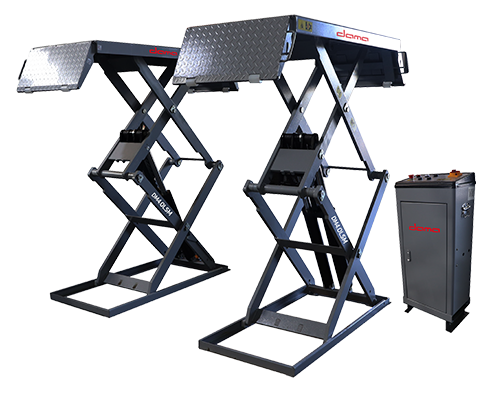

Dama HDM4.0LSM Scissor Lift
Dama HDM4.0LSM Scissor Lift
This full height short platform scissor lift is designed to be surface mounted with a low 115mm lowered height, which is low enough to drive most vehicles over without problem.
It has an impressive 4.0t lifting capacity which is ideal for larger style vehicles, 4x4's SUV's and vans.
Scissor lifts are an ideal option where space is limited or where posts want to be avoided. Scissor lifts work exceptionally well in service outlets, tyre bays, bodyshops and inspection bays.
The full raised height is an impressive 1950mm with a rapid rise and descent speed. The platforms are 1500mm long which is extendable to 2200mm by locking out the run on ramps. This lift is available in both single phase 230v & 3 phase 400v.
All prices include delivery and installation.
To Order - Call NOW on 01823 328530
Technical Specification
| Maximum Lifting Weight | 4000Kg |
| Platform Length | 1500-2200mm |
| Minimum Height | 115mm |
| Maximum Height | 1950mm |
| Weight | 840KG |
| Power Source | 230V / 1ph / 50Hz / 2.2KW 400V / 3ph / 50Hz / 2.2KW |
| Warranty | 24 Months |
