Texa Konfort 760R Air Conditioning Station

Texa Konfort 760R (R134A or R1234yf) Air Conditioning Station

Designed for efficient service

The Konfort 760R has all the same features as the 780R, but is designed as a single refrigerant unit. A retrofit kit to change the refrigerant type to 1234YF in the future is available. (This does not update the unit to a bi-gas as with the Konfort 780).

The 760R, 780R, and 760BUS, are all fitted with transport locks to protect the measuring system during transportation. In addition a range of accessories can be purchased for refrigerant flushing, VDC* contol diagonosis, system performance checks and gas analysis.

Features

• R134a or R1234yf compatible
• High visibility colour TFT display with interface Graphics
• DATABASE/SERVICE management via SD card
• Rotating gauge display
• 20 Kg internal tank for 760R
• 30 Kg internal tank for 760R BUS
• Charging accuracy +/- 15gr
• High efficiency refrigerant recovery (above 95%)
• Dual stage vacuum pump
• Hermetically sealed bottles
• Automatic high precision oil injection
• Automatic oil bottle recognition
• Automatic precise refrigerant measurement check (patented)
• Scale lock system
• Automatic service procedure management
• Multilingual software coverage
• Service hose length compensation
• Simplified service
• Automatic non condensable management

Functioning Modes

• Database
• Customised Service
• My Database

Refillable Hermetically Sealed Oil Bottles

Because standard bottles are not hermetically sealed, they always contain a percentage of air. The water molecules in the air bind with the oil and contaminate it. TEXA’s solution was to create special containers which prevent the oil from becoming contaminated by air and humidity. These have been patented. These special bottles can be re-used thanks to a special system which removes the air from the bottle.

Hydraulic System Flushing

In order to guarantee safety and efficiency, it is important that each type of oil and refrigerant are not cross contaminated. TEXA have therefore developed a special automatic flushing function to clean the internal circuits of the service station.

Automatic Bottle Identification

With the introduction of new vehicles, particularly electric and hybrid vehicles, new oils have been introduced for these applications. The correct oil type must be used relating to the air conditioning system to be serviced (eg PAG or POE). It is potentially damaging and dangerous to inject non-compatible oils into the system, so the operator must take care to avoid mistakes. TEXA has developed an automatic oil bottle recognition system which, by comparing the data contained in the vehicles database, signals if the incorrect bottle is in use.

Tilt Sensor System For Accurate Readings

The scales used for refrigerant measurement can be inaccurate when used on uneven surfaces. TEXA’s patented TILT SENSOR SYSTEM analyses the scales horizontal positioning and alerts the operator to the fact that the readings may be inaccurate.

Fan Protection System

The new R1234yf refrigerant has been classified as being ‘highly flammable’ and this must be acknowledged by the operator. The KONFORT 700 series air conditioning service stations adopts a high efficiency redundant fan system to eliminate any possible refrigerant build up within the unit.

Automatic Leak Detection Management

The KONFORT 700 series units automatically carry out a dual leak detection check. All safety related operations take place automatically in order to eliminate errors.

Operating Software

TEXA operating software conforms to the strictest requirements of accuracy and precision.

Any possible faults or messages are displayed via detailed error messages. TEXA software manages the recovery and service processes, in order to guarantee precession that was previously unknown.

In particular, the automatic procedures assist the operator with repairs on highly sophisticated systems, such as those fitted on the new hybrid vehicles. All models have a removable SD card which allows communication with a Windows PC to update vehicle make and model database, check and certify all services and potential software updates.

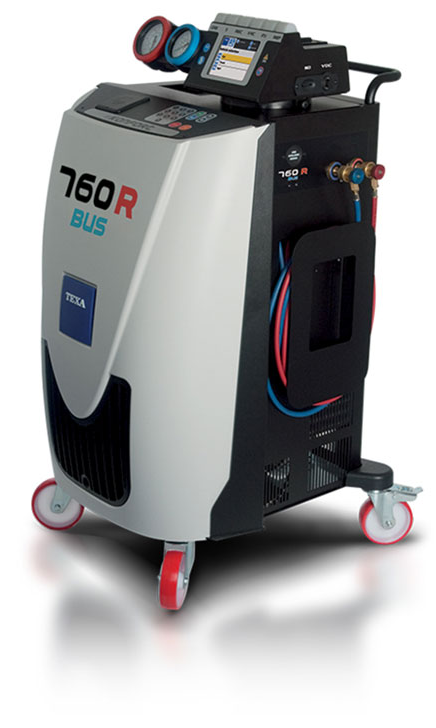

Konfort 760R BUS: Ideal For Large A/C Systems

The 760R BUS specifically developed for larger systems. Is equipped with a 30 Kg internal storage tank, a larger 21cc compressor for refrigerant and a 146l/min dual stage vacuum pump, able to generate depression of 0.030 mbar.

Like the standard 760R, the Bus version too can work either with the older R134a refrigerant or with the new R1234yf, and can switch from one to the other with the installation of an optional retrofit kit.

Optional

Climate Control Efficiency Kit

The new KONFORT air conditioning service station models offer an optional climate control efficiency kit module, which allows ambient and vent temperatures to be measured. Once the test has been carried out, the KONFORT unit provides a detailed performance report.

Vehicle Flushing Kit

Flushing is the mechanical operation carried out to clean the air conditioning system components of a vehicle. This includes:

• A supplementary 6lt capacity tank with a contamination indicator
• A stainless steel filter which is easily removable for cleaning
• 5mm diameter hoses flushing hose
• Universal adapter case

VDC Kit

TEXA has developed a VDC interface (Variable Displacement Compressor) which allows air conditioning system with variable cylinder compressor to be tested. The VDC allows the technician to intervene and modify the compressor control signal through the Konfort service station, to test the functionality of the system.

Thermal Printer

The KONFORT 720R can also be equipped with a practical and functional thermal printer. This extremely useful option lets you print out a small report of the work performed at the end of the service. The report lists details like the quantity of refrigerant recovered, the type of oil injected into the system and the final pressure in the A/C system after servicing.

Refrigerant Identifier Kit

A solution which automatically identifies the refrigerant on behalf of the operator when using R134a and R1234yf refrigerants. This kit ensures that incorrect or contaminated refrigerant is not recovered into the KONFORT service station.
