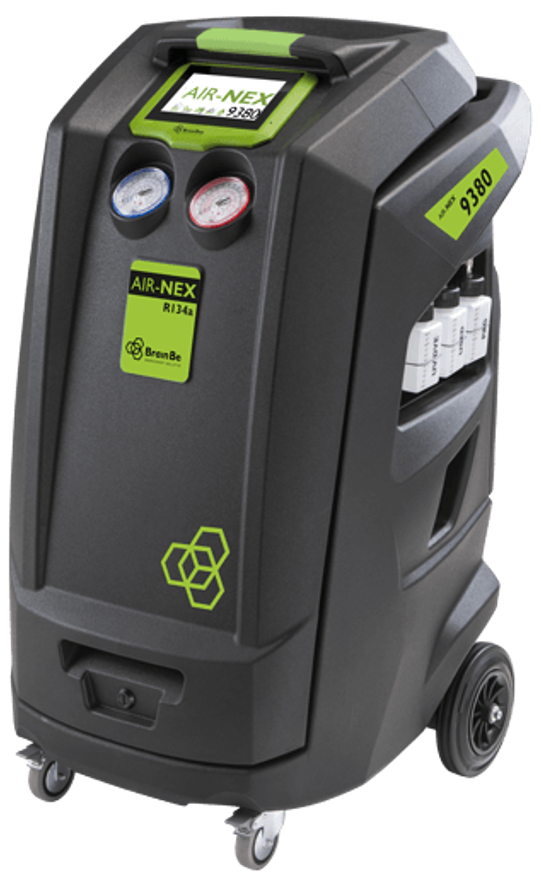

Brain Bee Air-Nex 9380 Air Conditioning Station
Brain Bee Air-Nex 9380 Air Conditioning Station for R134a
AIR-NEX 9380 is the Top Level A/C station in the series. You could not wish for more! It offers all the distinguishing characteristics of the AIR-NEX line, adding the extreme comfort of the integrated POE oil circuit, necessary for those who frequently service hybrid or electric cars, alternating with cars with traditional engines.
AIR-NEX 9380, for R134a systems, is easily convertible into R-1234yf, or if necessary, also in the new R513a, as well as it is possible to extend its functions thanks to the optional integration with the instruments of self-diagnosis BRAIN BEE.
The integration of our special app is innovative and useful, as it is able to control, service and remote the display. This makes it to a practical and interactive tool and aims at winning the customers’ loyalty.
All updates, software and databases are self-installed thanks to the integrated Wifi connection. The integrated AIR-PRINT application is also available.
Key Features
- 7” high visibility Touchscreen display
- ONETOUCH liftdoor system
- Wifi
- ASA NETWORK interface
- AIR-PRINT software
- Multipass
- UV Test
- Flushing(1)
- Hybrid function(1)
- N-leak Test(1)
- Brain Bee Scantools intregrated(1)
- APP (iOS and Android) integrated
- Oil Care system
- Autom. purging of non-condensing gas
- Made by MAHLE
- (1) Optional kit required
Technical Data
- Dimensions 700 x 750 x 1,100 mm (L x W x H)
- Weight 85 kg
- Reservoir capacity 20l
- On board Printer optional
- Gas identifier optional
Super Charge
In all ambient conditions, the station is 100 % guaranteed to charge the system with the programmed quantity, irrespective of the temperature of the environment or engine – always at a constant speed and with clear energy savings
Air Purge System
Automatic monitoring of non-condensing gas: special software ensures that the purging of noncondensing gas is only recommended when actually necessary. This way, you can decide for yourself whether you wish to carry out this procedure, and always stay in complete control of the station
Oil Clean
The exclusive Oil Clean feature ensures that less refrigerant is needed to eliminate the old oil. What’s more, every day, from the first service to the last, exactly the right amount of oil is put in.
HPV
The HPV (High Precision Vacuum) reaches the required level of vacuum for the drying effect more quickly, saving energy.
ECO LOCK
ECO LOCK® is a patented feature that enables you to reduce the quantities of gas, ensuring your safety and greatly helping to protect the environment. The A/C station separates the air that normally gets into the refrigerant in the tank when it is connected to the vehicle. It then tests the vehicle connections for leaks before the end of the air conditioning service.
Long Life Pump
The special LONG-LIFE PUMP® feature extends the average life of the pump oil used in the station to up to 1,000 hours.
N-Leak Test
With the optional Nitrogen Kit, you can perform a leak test on the air conditioning system under pressure using nitrogen forming gas. The station software is prepared for this option as standard.
Agri & Work
Our AC stations are equipped with the special optional AGRI & WORK feature, making them the perfect assistant to all agricultural and construction machinery engineers. The agricultural machine database and a special multi-stage program optimise the recharging process and fine-tune it to the specific requirements of A/C units that are difficult to access using extended hoses.
Combi Deal
2 x Automatic Air Conditioning Machines R134a and R1234yf.
Buy both machines to offer a comprehensive service covering both refrigerants.
AIR-NEX 9380 & AIR-NEX 9480
