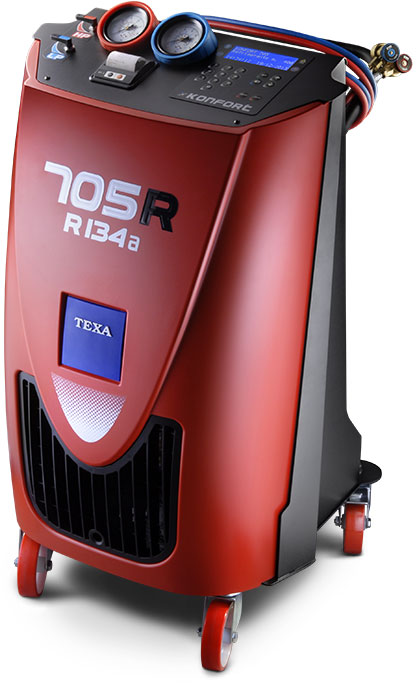

Texa Konfort 705R Air Conditioning Station
Texa Konfort 705R Air Conditioning Station
A very low cost entry level R134A machine for the smaller garage that wants to vacuum and recharge as cost effectively as possible.
The unit offers the normal high build quality of Texa machines and is fully automatic in operation, carries the full database, includes automatic oil injection but requires UV dye to be introduced separately.
Features
- Compatible with R134a
- Automated management of recovery and recycling
- Manual and automated use
- Vehicle database for car
- 10 kg tank
- Single stage vacuum pump
- Automatic oil injection (timed function)
- 2 manual recharging line control valves
- 2 years warranty extendable to 5 years
- Integrated thermal printer
Functioning Modes
- Database
- Customised Service
- My Database
Hydraulic System Flushing
In order to guarantee safety and efficiency, it is important that each type of oil and refrigerant are not cross contaminated. TEXA have therefore developed a special automatic flushing function to clean the internal circuits of the service station.
Automatic Leak Detection Management
The KONFORT 700 series units automatically carry out a dual leak detection check. All safety related operations take place automatically in order to eliminate errors.
Operating Software
TEXA operating software conforms to the strictest requirements of accuracy and precision.
Any possible faults or messages are displayed via detailed error messages. TEXA software manages the recovery and service processes, in order to guarantee precession that was previously unknown.
In particular, the automatic procedures assist the operator with repairs on highly sophisticated systems, such as those fitted on the new hybrid vehicles. All models have a removable SD card which allows communication with a Windows PC to update vehicle make and model database, check and certify all services and potential software updates.
Combi Deal
2 x Automatic Air Conditioning Machines R134a and R1234yf.
Buy both machines to offer a comprehensive service covering both refrigerants.
Texa 705R & Texa 707R
Technical Specification
- R134a compatible
- CAR and TRUCK compatible
- Automatic leak detection
- Electronic scales for refrigerant weight measurement
- Timed oil injection
- Hybrid vehicle compatible
- Automatic service management (database)
- Personal service management (database)
- Flushing system for oil changes
- KONFORT service reports on SD
- Print-out of completed services (OPTIONAL)
- High visibility graphic display
- DATABASE and service management by SD card
- 10 kg tank
- Charging accuracy +/- 15 g
- 100 l/min single stage vacuum pump
- Functioning modes: DATABASE
- Functioning modes: PERSONALISED SERVICE
- Functioning modes: MY DATABASE
- Multi-language software
- Automatic compensation for length of recharging lines
- Automatic maintenance alarm
- Thermal printer (OPTIONAL)
- 2 manual line control valves
- Leakage detection kit with forming gas (OPTIONAL)
