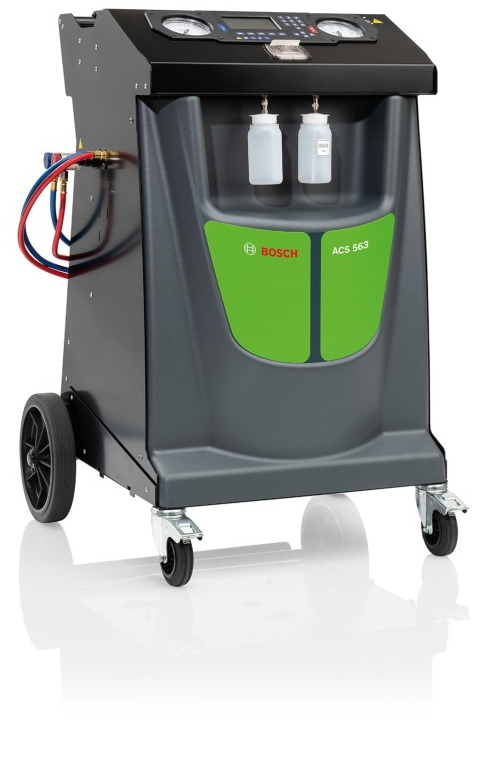

Bosch ACS563 R1234YF Air Conditioning Station
Bosch ACS563 R1234YF Air Conditioning Station
The ACS 563 (1234yf) is the latest addition to the new Bosch AC service range. It offers the right balance of performance and functionality and covers basic service tasks such as refrigerant recovery, recycling and refrigerant recharge.
- Fully automatic operating modes
- Automatic refrigerant & oil recovery
- Automatic vacuum leak test & oil injection
- Supports both PAG & POE oil
- Automatic refrigerant charge with electronic scales
- Electronically controlled Air Purge system
- Tank capacity 10 ltr
Download the ACS563 Sales Leaflet
Technical Data
| Refrigerant | R1234yf |
| Operating mode | Fully automatic |
| Recovery function | Automatic |
| Recovery rate | Up to 95% |
| Refrigerant detection | Optional (external) |
| Oil drain | Automatic, timed |
| Vacuum function | Automatic |
| Leak test | Automatic |
| Pressure leak test | Yes |
| Pressure leak test (N2 / N2H2) | No |
| Hybrid oil function | Yes |
| Oil injection | PAG/POE Automatic |
| UV dye injection | No |
| Refrigerant charge | Automatic, with electronic scale |
| Flushing function | Optional |
| Printer | ACS 553-P |
| Ventilation system | Electronic control |
| Valves, HP/LP | Valveless |
| Pressure gage, HP/LP | 100 mm, pulse-free |
| Tank pressure display | No |
| Service hoses | 2,5 m (5 m optional) |
| Display | 4.3" color display |
| Compressor | 1/4 HP |
| Vacuum pump | 70 l/min. (2.5 CFM) |
| Refrigerant tank capacity | 8.9 kg (R1234yf) |
| Oil bottles | 2 x 250 ml |
| Used oil bottle | 1 x 250 ml |
| UV dye bottle | No |
| Dimensions in cm (L x W x H) | 99 x 69 x 67 |
| Weight (with empty refrigerant tank) | 74 kg |
| Vehicle database | Yes |
| Programmable user database | Yes |
| A/C system performance test | Yes |
| Vehicle flushing adapter kit | Optional kit |
| USB port | Yes |
| Wi-Fi connection | Optional |
| App connection | Optional |
Scope of Delivery
- User manual
- High + Low side service hoses (R1234yf)
- High + Low side quick couplers (R1234yf)
- 1x (empty) oil bottle PAG 250 ml
- 1x (empty) oil bottle POE 250 ml
- 1x oil drain bottle 250ml
- EU power cable
- Printer paper roll (P variants only)
- UK power cable (P variants only)
