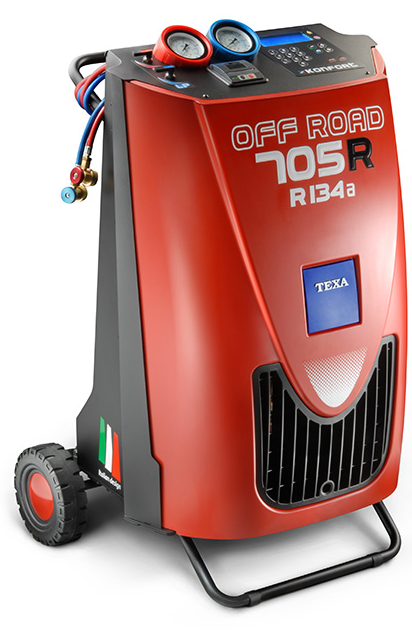

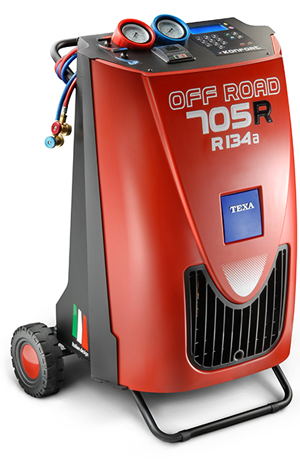

Texa Konfort 705R Off Road Air Conditioning Station
Texa Konfort 705R Off Road Air Conditioning Station
The Konfort 705R OFF ROAD, has been developed by TEXA for the Agri and OHW sector. This service station for the R134a only, is derived from the Konfort 705R and is dedicated features for technicians who work in outdoor environments.
It is equipped with large rear wheels filled with a special anti-puncture foam with a solid metal bar replacing the front wheels.
These modifications ensure manovurbilty and increase stability during use. Another design detail especially for outdoor use, is the scale locking system that protects the load cell from calibration inaccuracies during transport.
Features
- Compatible with R134a
- High visibility, 4x20 character, blue backlit LCD screen
- DATABASE and service management by SD card
- 10 kg tank
- Single stage vacuum pump 100 l/min
- Charging accuracy +/- 15gr
- Automatic oil injection (timed function)
- 2 manual recharging line control valves
- Multi-language software
- Automatic compensation for length of recharging lines
- Automatic maintenance alarm
- Scale lock system
- Integrated thermal printer
Functioning Modes
- Database
- Customised Service
- My Database
Hydraulic System Flushing
In order to guarantee safety and efficiency, it is important that each type of oil and refrigerant are not cross contaminated. TEXA have therefore developed a special automatic flushing function to clean the internal circuits of the service station.
Automatic Leak Detection Management
The KONFORT 700 series units automatically carry out a dual leak detection check. All safety related operations take place automatically in order to eliminate errors.
Operating Software
TEXA operating software conforms to the strictest requirements of accuracy and precision.
Any possible faults or messages are displayed via detailed error messages. TEXA software manages the recovery and service processes, in order to guarantee precession that was previously unknown.
In particular, the automatic procedures assist the operator with repairs on highly sophisticated systems, such as those fitted on the new hybrid vehicles. All models have a removable SD card which allows communication with a Windows PC to update vehicle make and model database, check and certify all services and potential software updates.
Technical Specification
- R134a compatible
- CAR and TRUCK compatible
- Automatic leak detection
- Electronic scales for refrigerant weight measurement
- Timed oil injection
- Hybrid vehicle compatible
- Automatic service management (database)
- Personal service management (database)
- Flushing system for oil changes
- KONFORT service reports on SD
- Print-out of completed services (OPTIONAL)
- High visibility graphic display
- DATABASE and service management by SD card
- 10 kg tank
- Charging accuracy +/- 15 g
- 100 l/min single stage vacuum pump
- Scales locking system
- Functioning modes: DATABASE
- Functioning modes: PERSONALISED SERVICE
- Functioning modes: MY DATABASE
- Multi-language software
- Automatic compensation for length of recharging lines
- Automatic maintenance alarm
- Thermal printer (OPTIONAL)
- 2 manual line control valves
- Leakage detection kit with forming gas (OPTIONAL)
