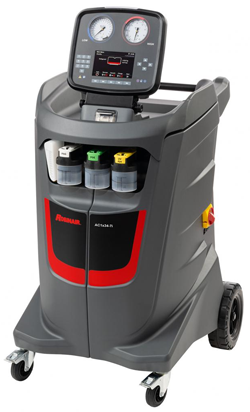

Robinair AC1X34-5i Air Conditioning Station
Robinair AC1X34-5i Air Conditioning Station
The new reference for R134a air conditioning service units.
The fully-automatic unit for servicing air conditioning units in cars and commercial vehicles with R134a refrigerant. Compatible with hybrid A/C systems meeting European standards, ensuring correct and environmentally-friendly handling of refrigerant.
- 99% recovery rate (Deep Recovery)
- Dual-stage vacuum pump 170 l/min
- PAG/POE oil injection
Advantages at a glance
- Design-for-service for the easiest and most effective ACS internal maintenance
- Deep Recovery function allows full empting of the MAC system
- Innovative oil bottle system suitable for vehicles with combustion engines and hybrid vehicles (PAG/POE)
- Developed based on customer experience using ACS units, resulting in a product with the perfect balance between robustness and manoeuvrability
Downloads
Technical Specification
- Refrigerant: R134a
- Operating modes: Fully automatic
- Refrigerant recovery: Automatic
- Recovery performance: up to 99 %
- Refrigerant identifier: Optional (external)
- Oil recovery: Automatic with electronic scale
- Vacuum leak test: Automatic
- Oil injection: Automatic (PAG or POE)
- Refrigerant charge: Automatic with electronic scale
- Flushing function: Optional
- Embedded Printer
- Air purge system: Electronically controlled
- HP & LP panel valves: Valveless
- HP & LP pressure gauge: 100 mm pulse free Class 1
- Service hoses length & specs: 2.5 m (5 m optional)
- Display: 4.3"
- Compressor: 1/4 HP
- Vacuum pump: 170 l/min (6 CFM)
- Tank capacity: 19.5kg
- Oil tanks: 2 x 250ml
- Dimension: 105 x 75 x 77
- Weight: 112 kg
- Power Supply: 230 50/60 Hz
- Vehicle database: B50 Yes
Combi Deal
2 x Automatic Air Conditioning Machines R134a and R1234yf.
Buy both machines to offer a comprehensive service covering both refrigerants.
AC1234-5i & AC1x34-5i
