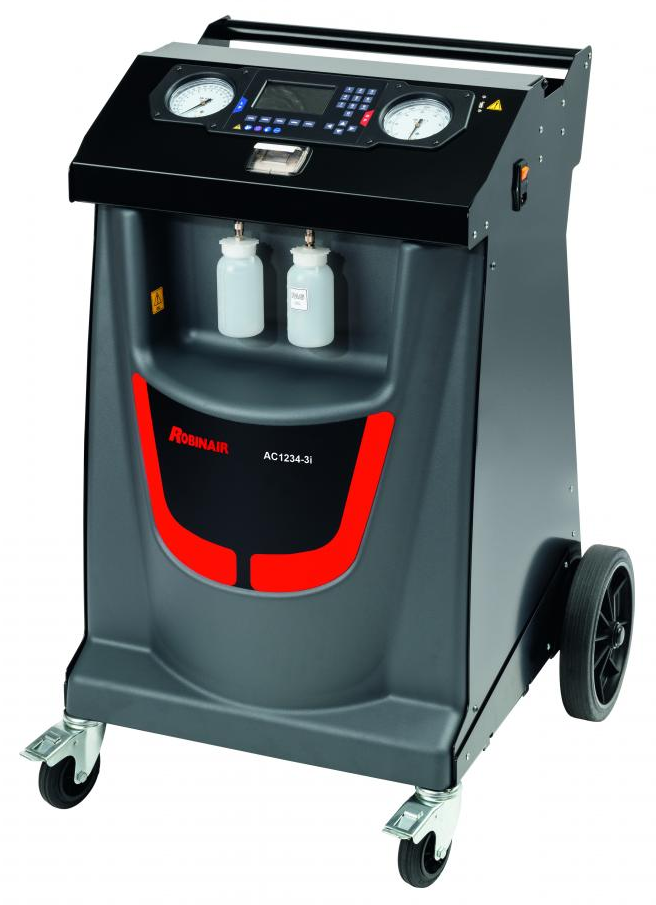

Robinair AC1234-3i Air Conditioning Station
Robinair AC1234-3i Air Conditioning Station
High quality service equipment for efficient air conditioning service and maintenance - The best in class for R1234yf air conditioning service units.
R1234yf completely fully automatic service units meet the highest requirements for servicing air conditioning units in cars and commercial vehicles.
Compatible with hybrid A/C systems meeting German car manufacturer specifications, SAE and European standards.
- 95 % recovery rate (Deep Recovery)
- N2H2/N2 leak test embedded
- Swivelling control console
- Smartphone app
- Integrated leak detection system
- Innovative oil bottle system
Downloads
Technical Specification
- Refrigerant: R-1234yf
- Operating modes: Fully automatic
- Refrigerant recovery: Automatic
- Recovery performance: up to 95 %
- Refrigerant identifier: Optional (external)
- Oil recovery: Automatic (timed)
- Vacuum leak test: Automatic
- Oil injection: Automatic (PAG or POE)
- Refrigerant charge: Automatic with electronic scale
- Flushing function: Optional
- Air purge system: Electronically controlled
- HP & LP panel valves: Valveless
- HP & LP pressure gauge: 100 mm pulse free Class 1
- Service hoses length & specs: 2.5 m (5 m optional)
- Compressor: 1/4 HP
- Vacuum pump: 70 l/min (2.5 CFM)
- Tank capacity: 10 l
- Oil tanks: 2 x 250ml
- Dimension: 99 x 69 x 67 cm
- Weight: 74 kg
- Power Supply: 230 50/60 Hz
- Vehicle database: B50 Yes
