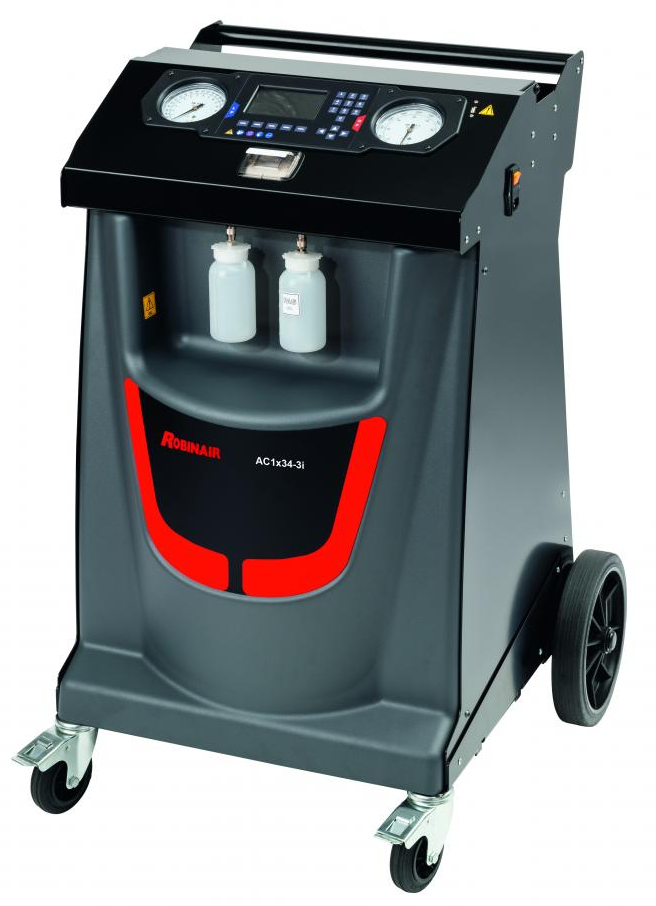

Robinair AC1x34-3i Air Conditioning Station
Robinair AC1x34-3i Air Conditioning Station
The AC1x34-3i P is the latest addition to the new Robinair Air Conditioning service unit family.
It offers the perfect balance of performance and functionality, covering essential service tasks such as refrigerant recovery, recycling and refrigerant recharge.
The product design and development focused on the essentials in order to provide the right solution for standard service and maintenance tasks on passenger cars and commercial vehicles, including hybrid and electric vehicles with R-134a based AC systems.
Downloads
Technical Specification
- Refrigerant: R-134a
- Operating modes: Fully automatic
- Refrigerant recovery: Automatic
- Recovery performance: up to 95 %
- Refrigerant identifier: Optional (external)
- Oil recovery: Automatic (timed)
- Vacuum leak test: Automatic
- Oil injection: Automatic (PAG or POE)
- Refrigerant charge: Automatic with electronic scale
- Flushing function: Optional
- Air purge system: Electronically controlled
- HP & LP panel valves: Valveless
- HP & LP pressure gauge: 100 mm pulse free Class 1
- Service hoses length & specs: 2.5 m (5 m optional)
- Compressor: 1/4 HP
- Vacuum pump: 70 l/min (2.5 CFM)
- Tank capacity: 10 l
- Oil tanks: 2 x 250ml
- Dimension: 99 x 69 x 67 cm
- Weight: 74 kg
- Power Supply: 230 50/60 Hz
- Vehicle database: B50 Yes
Combi Deal
2 x Automatic Air Conditioning Machines R134a and R1234yf.
Buy both machines to offer a comprehensive service covering both refrigerants.
AC1234-3i & AC1x34-3i
