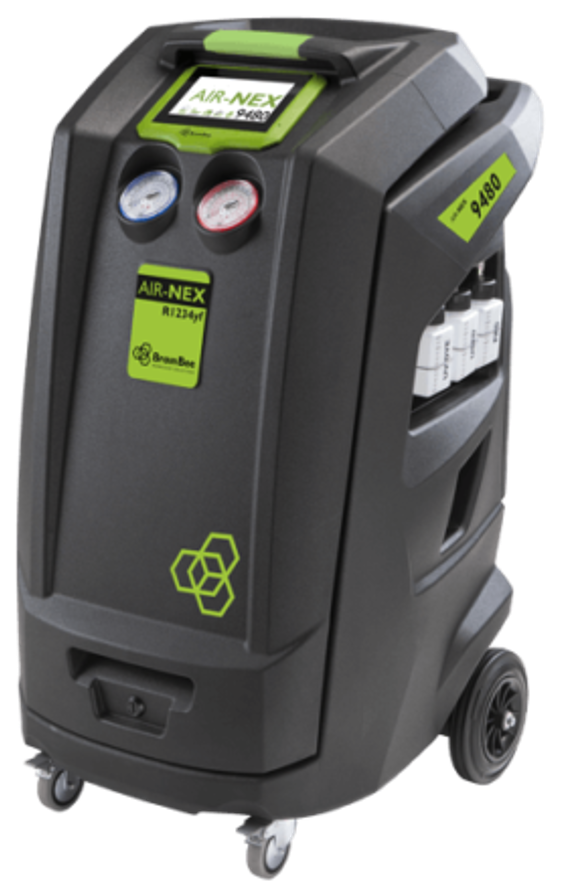

Brain Bee Air-Nex 9480 Air Conditioning Station
Brain Bee Air-Nex 9480 Air Conditioning Station for R1234yf
AIR-NEX 9480 for R-1234yf is the flagship of the AIR-NEX range. Extremely safe, as certified by EGEA, the voluntary certification that meets the stringent requirements of the EMC, LVP and PED regulations, does not renounce to offer its users extreme practicality and friendly use.
The ergonomic design of the AIR-NEX generation has been developed in cooperation with workshops, projected after analyzing carefully the daily work in the workshop. With AIR-NEX 9480 it is possible to fully entrust the recharge service to the automated processes of the station, sure of an impeccable result and being able to devote to other activities in the meantime. The profitability of the top-up service is thus ensured.
The integrated Wifi connection is the constant element of the entire line, which allows, in the case of AIR-NEX 9480 to fully exploit all the innovative features. Indeed like the model for 134, also AIR-NEX 9480 offers the integration with special APPs, which allow an absolutely innovative and practical management, as well as the integration with the BRAIN BEE diagnostic tool that enhance its field of action. Automatic updates and printing via AIR-PRINT.
Key Features
- 7” high visibility Touchscreen display
- ONETOUCH liftdoor system
- Wifi
- ASA NETWORK interface
- AIR-PRINT software
- Multipass
- UV Test
- Flushing(1)
- Hybrid function(1)
- N-leak Test(1)
- Brain Bee Scantools intregrated(1)
- APP (iOS and Android) integrated
- Oil Care system
- Autom. purging of non-condensing gas
- Made by MAHLE
- (1) Optional kit required
Technical Data
- Dimensions 700 x 750 x 1,100 mm (L x W x H)
- Weight 85 kg
- Reservoir capacity 20l
- On board Printer optional
- Gas identifier optional
Super Charge
In all ambient conditions, the station is 100 % guaranteed to charge the system with the programmed quantity, irrespective of the temperature of the environment or engine – always at a constant speed and with clear energy savings
Air Purge System
Automatic monitoring of non-condensing gas: special software ensures that the purging of noncondensing gas is only recommended when actually necessary. This way, you can decide for yourself whether you wish to carry out this procedure, and always stay in complete control of the station
Oil Clean
The exclusive Oil Clean feature ensures that less refrigerant is needed to eliminate the old oil. What’s more, every day, from the first service to the last, exactly the right amount of oil is put in.
HPV
The HPV (High Precision Vacuum) reaches the required level of vacuum for the drying effect more quickly, saving energy.
ECO LOCK
ECO LOCK® is a patented feature that enables you to reduce the quantities of gas, ensuring your safety and greatly helping to protect the environment. The A/C station separates the air that normally gets into the refrigerant in the tank when it is connected to the vehicle. It then tests the vehicle connections for leaks before the end of the air conditioning service.
Long Life Pump
The special LONG-LIFE PUMP® feature extends the average life of the pump oil used in the station to up to 1,000 hours.
N-Leak Test
With the optional Nitrogen Kit, you can perform a leak test on the air conditioning system under pressure using nitrogen forming gas. The station software is prepared for this option as standard.
Combi Deal
2 x Automatic Air Conditioning Machines R134a and R1234yf.
Buy both machines to offer a comprehensive service covering both refrigerants.
AIR-NEX 9380 & AIR-NEX 9480
