Stenhoj Masterlift 2.35 PV In-Ground Lift

Stenhoj Masterlift 2.35 PV 3.5T In-Ground Lift

Stenhoj Masterlift 2.35 PV 3.5T In-Ground Lift

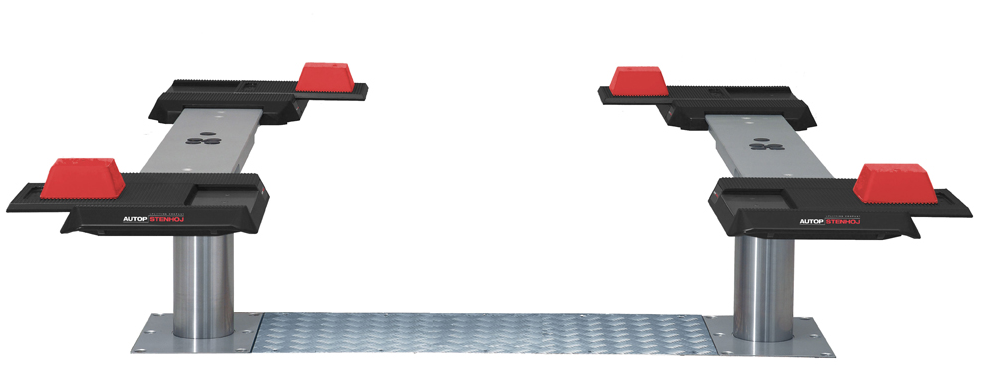

The AUTOPSTENHOJ In Ground Masterlift is a twin ram hydraulic lift which is an ideal choice for general vehicle repair and maintenance works. The lifting superstructure (which is hot galvanised) has a very low drive over height of just 65mm!The Autop Masterlift is a rather simple and solid hydraulic lift which can be used for lifting of a wide range of passenger cars.

Clever XY heads are an optional extra which are available for this lift and increase the lifting area.

Three different platform lengths are available:

  • 2.35 PV (120 -180) 1200mm – 1800mm
  • 2.30 PV (140 -200) 1400mm – 2000mm
  • 2.30 PV (160 -220) 1600mm – 2200mm
P/No. : stenmasterlift235pv

Technical Specification

Specifications Masterlift 2.35 Pv – 120-180 Masterlift 2.35 Pv – 140-200 Masterlift 2.35 Pv – 160-220
Lifting Capacity 3500kg 3500kg 3500kg
Lifting/Lowering Time app. 30 seconds / app. 30 seconds app. 30 seconds / app. 30 seconds app. 30 seconds / app. 30 seconds
Minimum Height 65mm 65mm 65mm
Maximum Height 1950mm 1950mm 1950mm
Minimum/Maximum Arm Lengths 1200mm – 1800mm 1400mm – 2000mm 1600mm – 2200mm
Motor Size 3 kW 3 kW 3 kW
Power Required 3 Phase (16amp Isolator required) 3 Phase (16amp Isolator required) 3 Phase (16amp Isolator required)
Operation Electro-hydraulic Electro-hydraulic Electro-hydraulic

Call us now on 01823 328530 for more details
