Stenhoj Biglift 2.50 In-Ground Lift

Stenhoj Biglift 2.50 5T In-Ground Lift

Stenhoj Biglift 2.50 5T In-Ground Lift

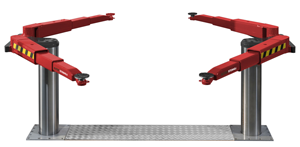

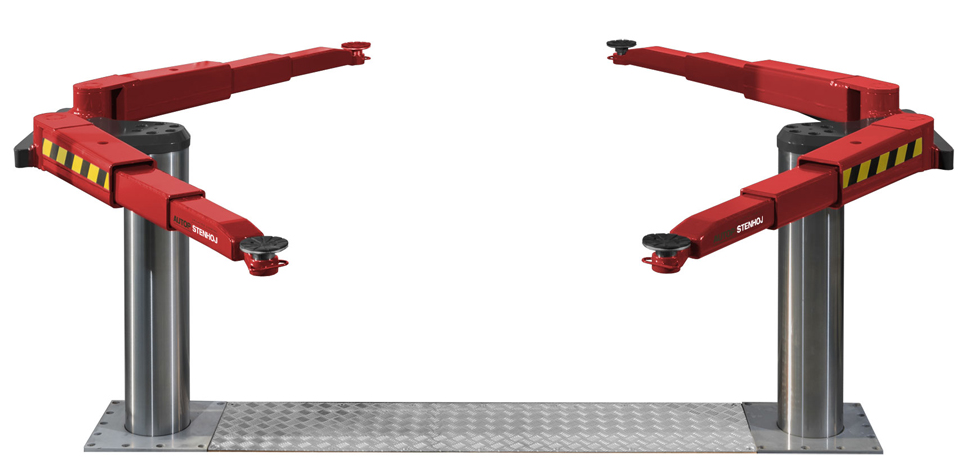

The AUTOPSTENHOJ Biglift series of in-ground twin ram hydraulic lifts are designed for heavy usage and are supplied as standard with 213mm diameter rams and long reach Double telescopic arms.

The swivel arms are telescopic and have an integrated automatic arm locking system. The length of the arms means that achieving a wide range of lifting areas is possible.

P/No. : stenbiglift250

Technical Specification

Specifications Saa 230 Saa 265
Lifting Capacity 5000kg 5000kg
Lifting/Lowering Time 45 seconds / 45 seconds 45 seconds / 45 seconds
Minimum Height 135 – 195mm 135 – 195mm
Maximum Height 2005mm – 2060mm 2005mm – 2065mm
Front Minimum/Maximum Arm Lengths 715 – 1410mm 715 – 1410mm
Drive-through width 1903mm 2430mm
Motor Size 3 kW 3 kW
Power Required 3 Phase (16amp Isolator required) 3 Phase (16amp Isolator required)
Operation Electro-hydraulic Electro-hydraulic

Call us now on 01823 328530 for more details
