Stenhoj Masterlift 2.35 Saav In-Ground Lift

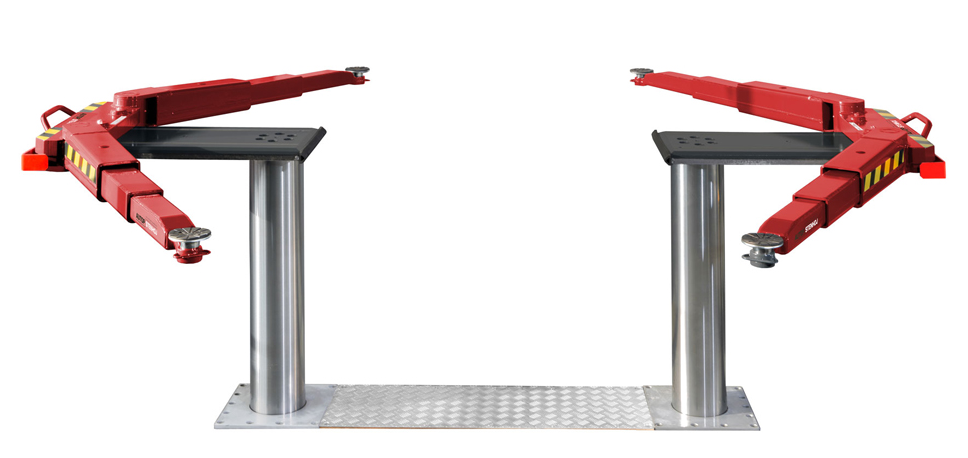

Stenhoj Masterlift 2.35 Saav 3.5T In-Ground Lift

Stenhoj Masterlift 2.35 Saav 3.5T In-Ground Lift

The AUTOPSTENHOJ Masterlift series of in-ground twin ram hydraulic lifts have been designed carefully to accommodate a wide range of vehicles including cars, vans (excluding LWB) and high-end sports cars.

The double-telescopic swivel arms have an integrated automatic arm locking system. The length of the arms means that achieving a wide range of lifting areas is possible.

In the Masterlift series there are two swivel arm models:

  • 2.35 Saav 135 Van – Universal
  • 2.35 Saav 135 Van – Sports
P/No. : stenmasterlift235

Technical Specification

Specifications Masterlift 2.35 Saav 135 Van – Universal Masterlift 2.35 Saav 135 Van – Sport
Lifting Capacity 3500kg 3500kg
Lifting/Lowering Time app. 30 seconds / app. 30 seconds app. 30 seconds / app. 30 seconds
Minimum Height 95mm – 135mm 70mm – 95mm
Maximum Height 2020mm – 2085mm 2020mm – 2085mm
Minimum/Maximum Arm Lengths 710mm – 1443mm 710mm – 1443mm
Motor Size 3 kW 3 kW
Power Required 3 Phase (16amp Isolator required) 3 Phase (16amp Isolator required)
Operation Electro-hydraulic Electro-hydraulic

Call us now on 01823 328530 for more details
