Stenhoj Biglift 2.65 In-Ground Lift

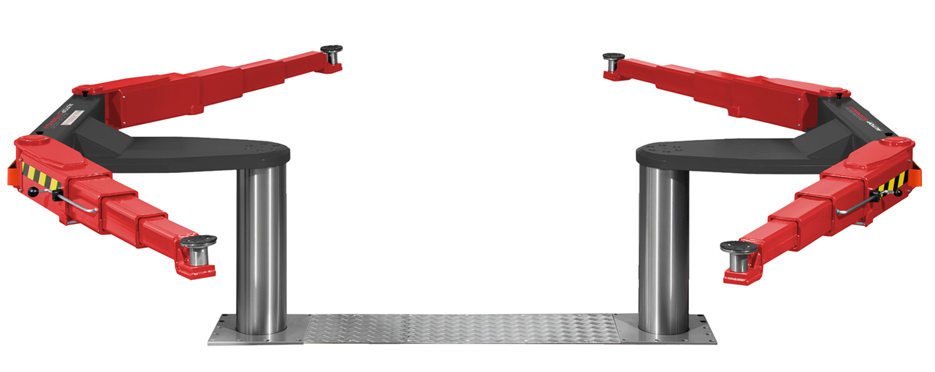

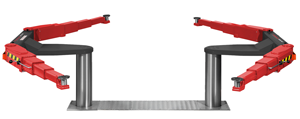

Stenhoj Biglift 2.65 6.5T In-Ground Lift

Stenhoj Biglift 2.65 6.5T In-Ground Lift

The AUTOPSTENHOJ Biglift is a solid hydraulic twin-ram in ground lift which is equipped with four stage heavy duty lifting arms which sit on sturdy 213mm diameter rams. The swivel arms are telescopic and have an integrated automatic arm locking system. The length of the arms means that achieving a wide range of lifting areas is possible.

From a car up to a LWB, this is the lift!

In the Biglift series there are three models:

  • 2.65 Saaa 145 – 6.5 tonne with 1,350mm distance between pistons
  • 2.65 Saaa 230 – 6.5 tonne with 2,150mm distance between pistons
  • 2.65 Saaa 265 – 6.5 tonne with 2,650mm distance between pistons
P/No. : stenbiglift265

Technical Specification

Lifting Capacity 6500kg
Lifting/Lowering Time 45 seconds / 45 seconds
Minimum Height 135mm – 195mm
Maximum Height 2015mm – 2,075mm
Minimum/Maximum Arm Lengths 770mm – 1640mm
Motor Size 3 kw
Power Required 3 phase (16amo isolator required)
Operation Electro-hydraulic
