Stenhoj Eurolift In-Ground Lift

Stenhoj Eurolift 3T In-Ground Lift

Stenhoj Eurolift 3T In-Ground Lift

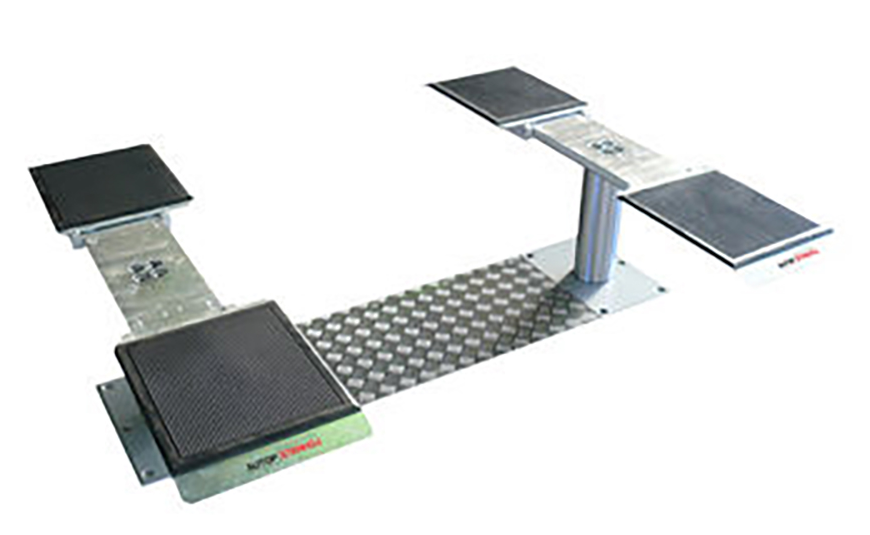

The AUTOPSTENHOJ Eurolift is a twin ram hydraulic lift which is an ideal choice for general vehicle repair and maintenance works. The lifting superstructure (which is hot galvanised) has a very low drive over height of just 65mm!

The Eurolift 2.30 Pv Repair is a rather simple and solid hydraulic lift which can be used for lifting of a wide range of passenger cars.

Clever XY heads are an optional extra which are available for this lift and increase the lifting area.

Three different platform lengths are available :

  • 2.30PV (120-180) 1200mm – 1800mm
  • 2.30 PV (140 -200) 1400mm – 2000mm
  • 2.30 PV (160 -220) 1600mm – 2200mm
P/No. : steneurolift

Technical Specification

Specifications Eurolift 2.30 Pv – 120-180 Eurolift 2.30 Pv – 140-200 Eurolift 2.30 Pv – 160-220
Lifting Capacity 3000kg 3000kg 3000kg
Lifting/Lowering Time 30 seconds / 30 seconds 30 seconds / 30 seconds 30 seconds / 30 seconds
Minimum Height 65mm 65mm 65mm
Maximum Height 2015mm + Rubber Pads 2015mm + Rubber Pads 2015mm + Rubber Pads
Front Minimum/Maximum Arm Lengths  1200mm – 1800mm  1400mm – 2000mm  1600mm – 2200mm
Motor Size 3 kW 3 kW 3 kW
Power Required 3 Phase (16amp Isolator required) 3 Phase (16amp Isolator required) 3 Phase (16amp Isolator required)
Operation Electro-hydraulic Electro-hydraulic Electro-hydraulic
