AutopStenhoj Major 4030 4 Post Lift

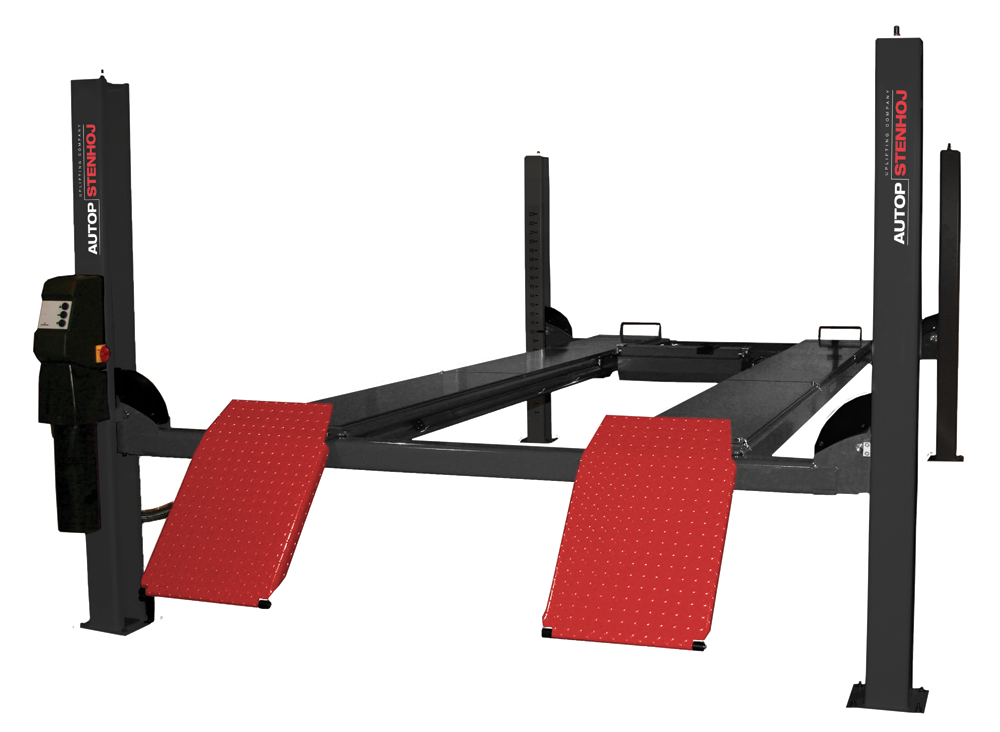

AutopStenhoj Major 4030 4 Tonne 4 Post Wheel Alignment Lift

AutopStenhoj Major 4030 4 Tonne 4 Post Wheel Alignment Lift

The AUTOPSTENHOJ Major 4030 Series of Wheel Alignment Four Post Lifts are available in two different models (009180 / 009200) with different platform lengths and with lifting capacities of 4 tonnes. As with all other Major Lifts, these lifts are electro-hydraulically operated and are fitted with an eccentric brake and an obstruction system with alarm.

The platform on the right hand side of the lift is also adjustable for extra wide/narrow vehicles.

WL Models come with front recesses for turn plates and rear slip plates – ideal for wheel alignment

ALL AUTOPSTENHOJ four post lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.

AUTOPSTENHOJ Lifts are manufactured in Denmark

Only £8145.00 + VAT
P/No. : stenmaj403047wl
Lease From £44.17 Per Week
Click Here for Details
Only £11345.00 + VAT
P/No. : stenmaj403051wl
Lease From £61.52 Per Week
Click Here for Details

Technical Specification

Lifting capacity 4000kg
Lifting/ lowering time 24 seconds / 26 seconds
Minimum height S / WL 140mm / 160mm
Maximum height 1810mm
Platform length 4030 – 47S/WL / 4030 – 51S/WL 4680mm / 5100mm
Platform width 550mm
Gap between platforms Adjustable – 805mm – 1285mm
Motor size 3 kW
Power Requirements 3 phase – 16a Isolator Required
Operation Electro-hydraulic

Call us now on 01823 328530 for more details
