Dama HDM5.5140 4 Post Lift
Dama HDM5.5140 4 Post Lift

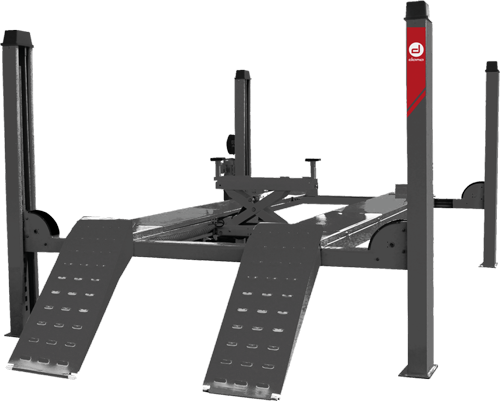

The Dama HDM5.5140 is the latest in a series of high quality 4 post lifts made available by Dama rl in Spain. This 5 tonne capacity, long platform 4 post lift is ideal for service work on everything from a car through to a long van or small truck. In addition the built in rear slip plates and removable front recess covers makes it perfect for wheel alignment. Cars, EV’s, loaded Vans and trucks can easily be approaching 5t and choosing the right capacity now and for the future is important. The HDM5.5140 boost some outstanding features including 5t capacity, 5140mm platform length, 2900mm between the posts, adjustable platform width, electronic decent, air locking and available in 230v & 400v, and as usual all backed by our parts & labour 2 year warranty.
Price includes delivery and installation.
Features
- Service & wheel alignment lift
- 5000kgs capacity
- Built in lockable rear slip plates
- Removable front recesses with variable turnplates positioning (turnplates optional)
- Generous 2900mm between the posts ideal for wheel alignment
- Air locking for precise levelling and rigidity
- Electrohydraulic operation
- Electronic decent system
- Safety locking system
- 2 year warranty
- Max. lifting height: 1900mm
- Platform length: 5140mm
- Removeable covers for front turnplates
- Single or 3 phase
- Optional Air and manual operated jacking beams available in 2t, 2.6t, 2.8t and 3t
Technical Specification
| Maximum Lifting Weight | 5000Kg |
| Lifting Height | 1900 mm |
| Overall Height | 2369 mm |
| Lifting / Lowering Time | < 120s |
| Power Source | 230V / 1Ph / 50Hz 400V / 3ph / 50Hz) |
| Warranty | 24 Months |

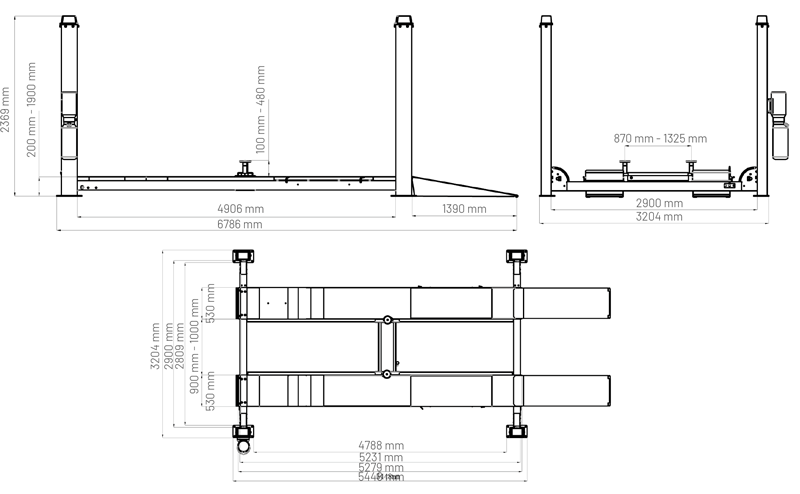

Drawings
Downloads
Call us now on 01823 328530 for more details
