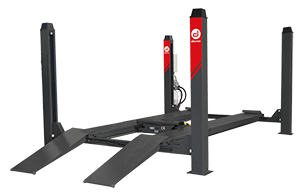

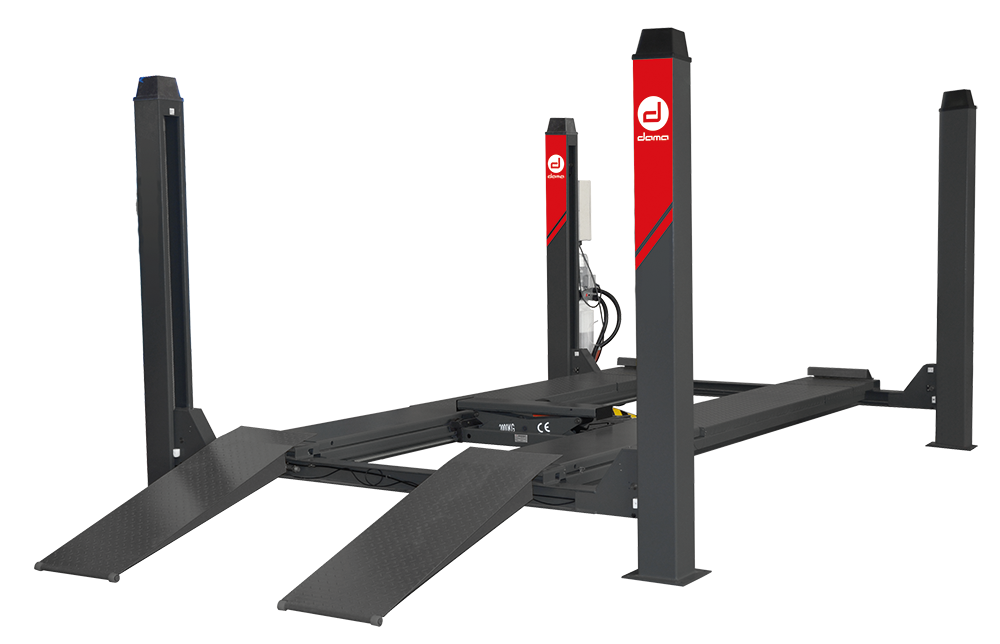

Dama HDM5.5F4 4 Post Lift
Dama HDM5.5F4 4 Post Lift
The HDM5.5F4 is a lift from the Dama Premier range and therefore has excellent build quality, outstanding features and understandably comes at a slightly increased price over the normal hugely competivly priced Dama 4 post lifts. This excellent quality 5.5t 4 post lift is both a service lift and a wheel alignment lift giving full flexability to the garage or Bodyshop.
It features 5.5t capacity, 5190mm platform length, removable plates to install front turnplates, built in lockable slip plates, one moving platform, electro hydraulic, 1 or 3 phase, rope slack system, satefy switches, air locking, electronic control, long run on ramps. All backed by our 2 year parts and labour warranty.
Price includes delivery and installation.
Features
- Electro-hydraulic
- Alignment
- Electro magnetic lowering valve
- Pneumatic locking system
- Steel rope security switch
- Top limit switch
Technical Specification
| Maximum Lifting Weight | 5500Kg |
| Lifting Time | < 50 secs |
| Lowering Time | < 60 secs |
| Weight | 1690 Kg |
| Power Supply | 400V / 3ph / 50Hz 4.33A / 2.2Kw 230V / 1ph / 50Hz 11.8A / 2.2Kw |
| Air Supply | 6-8 Kg/cm2 |
| Warranty | 24 Months |

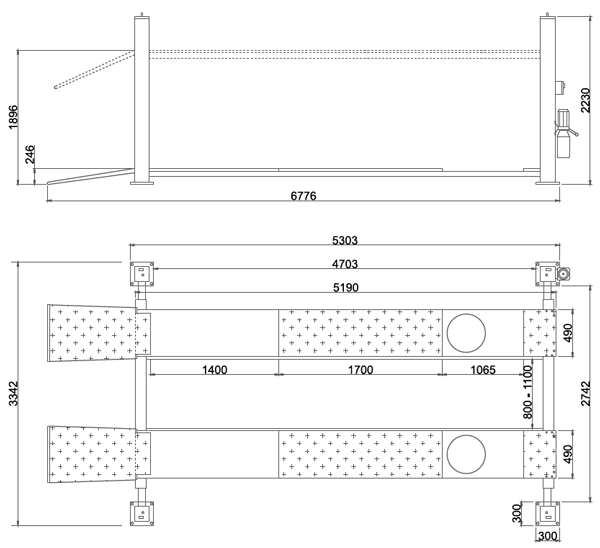

Drawings
Downloads
