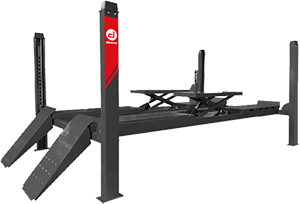

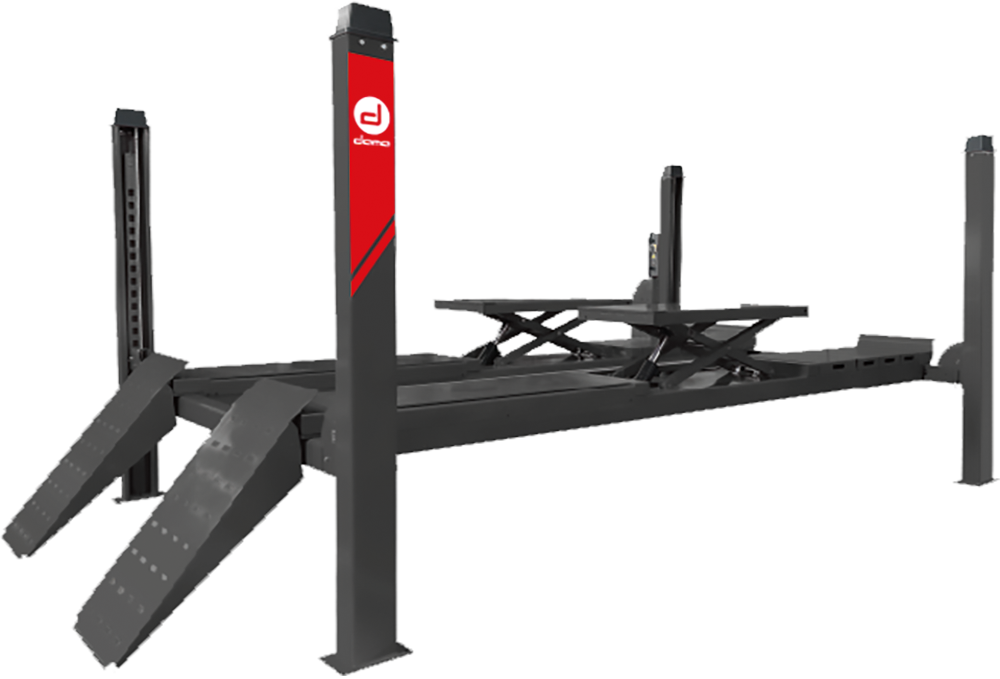

Dama HDM500.2SL 4 Post Lift with Integral Scissor

Dama HDM500.2SL 4 Post Lift with Integral Scissor
Another 4 post lift from the Dama premier range, this 4 post lift has everything going for it! A service lift that doubles as a wheel alignment lift with the addition of a built in secondary scissor lift. With this lift you can quickly change from your vehicle being stood on the wheels to all 4 wheels off the ground. This offers outstanding flexability, wheels off work and no clumsy jacking beams hanging under the vehicle.
The lift features a 5 tonne capacity, 4800mm platform length, removable plates to install front turnplates, built in lockable slip plates, built in 3.5t capacity scissor lift, wide 630mm width platforms, one moving platform, electro hydraulic operation, 1 or 3 phase, rope slack system, satefy switches, air locking, electronic control, long run on ramps. All backed by our 2 year parts and labour warranty.
Price includes delivery and installation.
Features
- Electro-hydraulic
- Secondary scissor lift
- Alignment
- Electro magnetic lowering valve
- Pneumatic locking system
- Steel rope security switch
- Top limit switch
Technical Specification
Maximum Lifting Weight | 5000Kg |
Maximum Capacity Secondary Lift | 3500Kg |
Lifting Time | 50 - 65 secs |
Weight | 1980 Kg |
Power Supply | 400V / 3ph / 50Hz 4.33A / 2.2Kw |

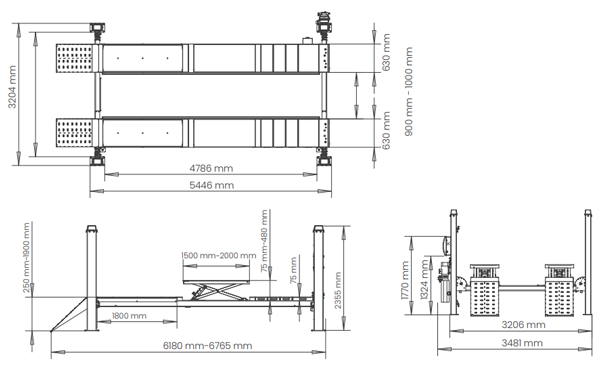

Drawings
Downloads
