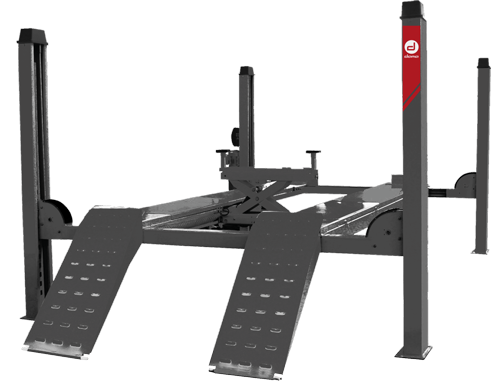

Dama HDM5.4700 4 Post Lift
Dama HDM5.4700 4 Post Lift
An ideal 5t 4 post lift to suit a position where space is a little tighter. Often space is a premium in garages and this 4700mm platform service and wheel alignment lift fits the bill ideally, long enough for most large cars & long vans it is ideal for servicing and general repairs and is also long enough to complete wheel alignment on all but the longest vehicles.
It features 5t capacity, 4700mm platform length, removable plates to install front turnplates, built in lockable slip plates, one moving platform, electro hydraulic, 1 or 3 phase, rope slack system, satefy switches, air locking, electronic control, long run on ramps. All backed by our 2 year parts and labour warranty.
Price includes delivery and installation.
Features
- Service & wheel alignment lift
- 5000kgs capacity
- 3 phase
- Electrohydraulic operation
- Max. lifting height: 1900mm
- Platform length: 4700mm
- Removeable covers for front turnplates
- Lockable rear slip plates
Technical Specification
| Maximum Lifting Weight | 5000Kg |
| Lifting Height | 1900 mm |
| Overall Height | 2369 mm |
| Lifting / Lowering Time | < 120s |
| Power Source | 400V / 3ph / 50Hz) |
| Warranty | 24 Months |

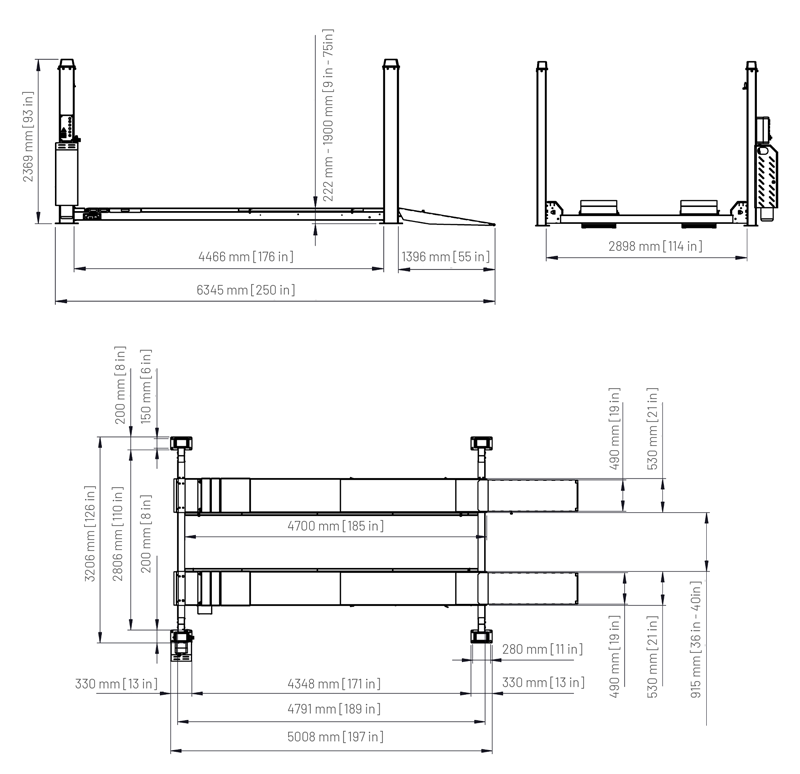

Drawings
Downloads
