AutopStenhoj Major 4030 4 Post Lift

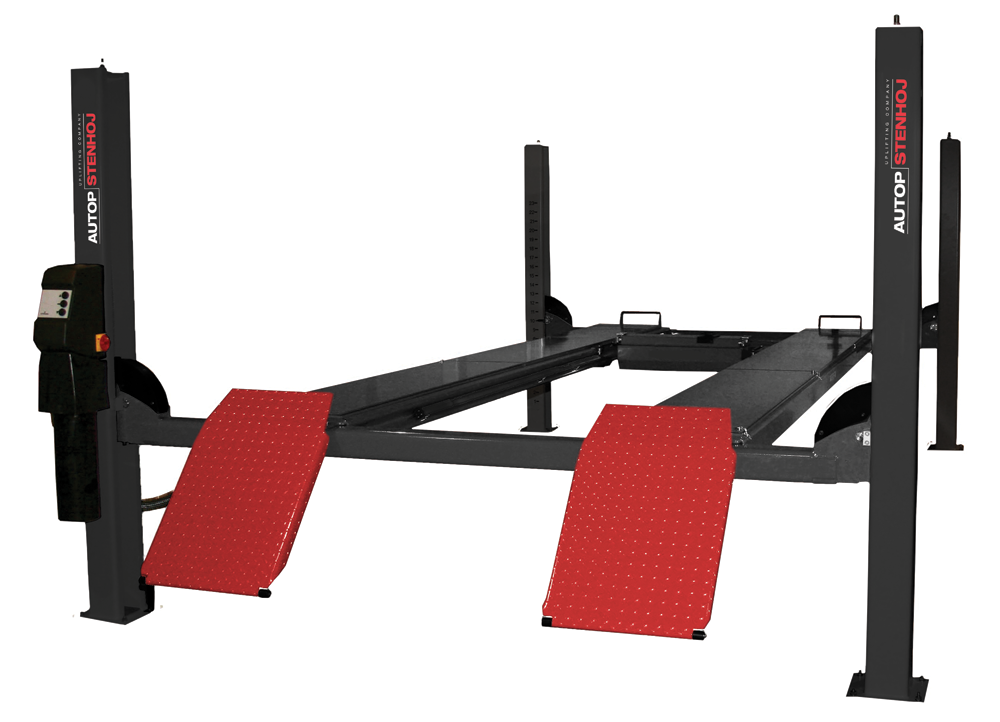

AutopStenhoj Major 4030 4 Tonne 4 Post Lift
The AUTOPSTENHOJ Major 4030 Series of Service Four Post Lifts are available with two different platform lengths and with lifting capacities of 4 tonnes.
As with all other AUTOPSTENHOJ Major Lifts, these lifts are electro-hydraulically operated and are fitted with an eccentric brake and an obstruction system with alarm. The platform on the right hand side of the lift is also adjustable for extra wide/narrow vehicles.
S Models come with flat platforms for service.
ALL AUTOPSTENHOJ four post lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.
AUTOPSTENHOJ Lifts are manufactured in Denmark
Technical Specification
| Lifting capacity | 4000kg |
| Lifting/ lowering time | 24 seconds / 26 seconds |
| Minimum height S / WL | 140mm / 160mm |
| Maximum height | 1810mm |
| Platform length 4030 – 47S/WL / 4030 – 51S/WL | 4680mm / 5100mm |
| Platform width | 550mm |
| Gap between platforms | Adjustable – 805mm – 1285mm |
| Motor size | 3 kW |
| Power Requirements | 3 phase – 16a Isolator Required |
| Operation | Electro-hydraulic |
Call us now on 01823 328530 for more details
