Ravaglioli 4500.3IMOT7 ATL 4 Post Lift

Ravaglioli 4500.3IMOT7 ATL 4 Post Lift
5 tonne four post electro-hydraulic lift, class 7 ATL/OPTL
Technical Specification
Lifting capacity | 5000kg |
Lowered Height | 175mm |
Platform length | 5700mm |
Platform width | 650mm |
Power Requirements | 3 phase |
Turnplates | Included |
Hydraulic Shaker Plate | Included |

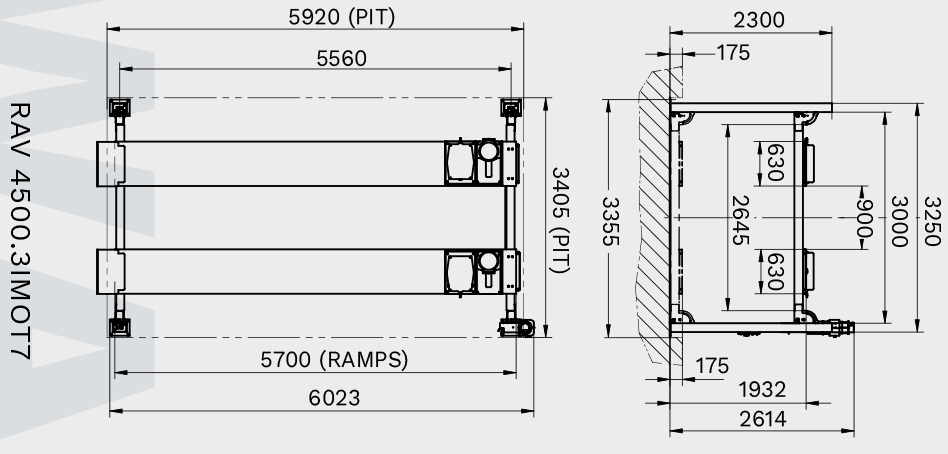

Drawings
