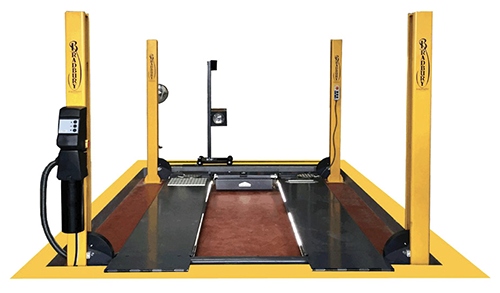

Bradbury H4523ATL LWB 4 Post MOT Lift

The Bradbury H4523ATL LWB 5.2 Tonne Class IV, VII & VL ATL Electro-Hydraulic Lift is suitable for one man MOT testing of class IV, VII and VL vehicles and is specifically designed to accommodate all long wheel based vehicles. As standard, this lift features a powerful pneumatically operated play detector which is operated with a robust wireless handset and heavy duty turntables recessed into the platforms.

Features

Safe & Reliable Hydraulic Operation
Complete with recessed radius plates and air operated play detector
Low profile platform
Anti tilt system
Emergency stop button
Automatic parking system
Eccentric brake system
DVSA Approved for IV, VII and VL Testing
Magnetic wireless handset standard
3 tonne lateral and rotational play detector standard

Technical Specification

Maximum Lifting Weight	5200Kg
Lifting Time	24-26 secs
Platform length	6210mm
Overall length	6280mm
Overall width	3300mm
Drive through width	3000mm
Each platform width	633mm
Distance between platforms	915mm
Minimum/maximum lifting height	140/1840mm
Air Supply	8 Bar
Electrical Supply – 3 Phase	Motor 380 – 415V, 3kW
Motor Size	3kW
Warranty	24 Months

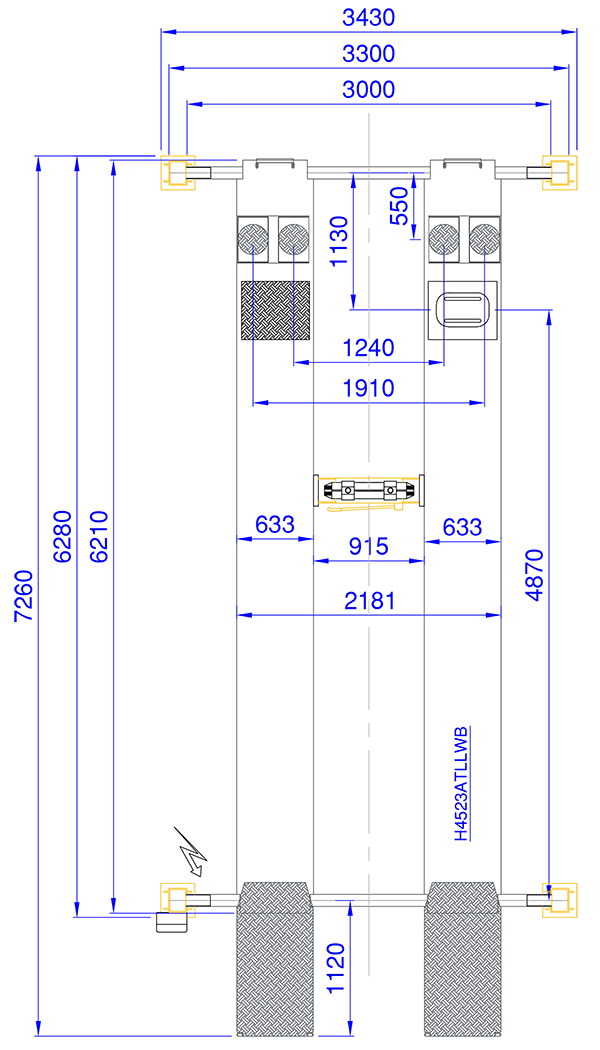

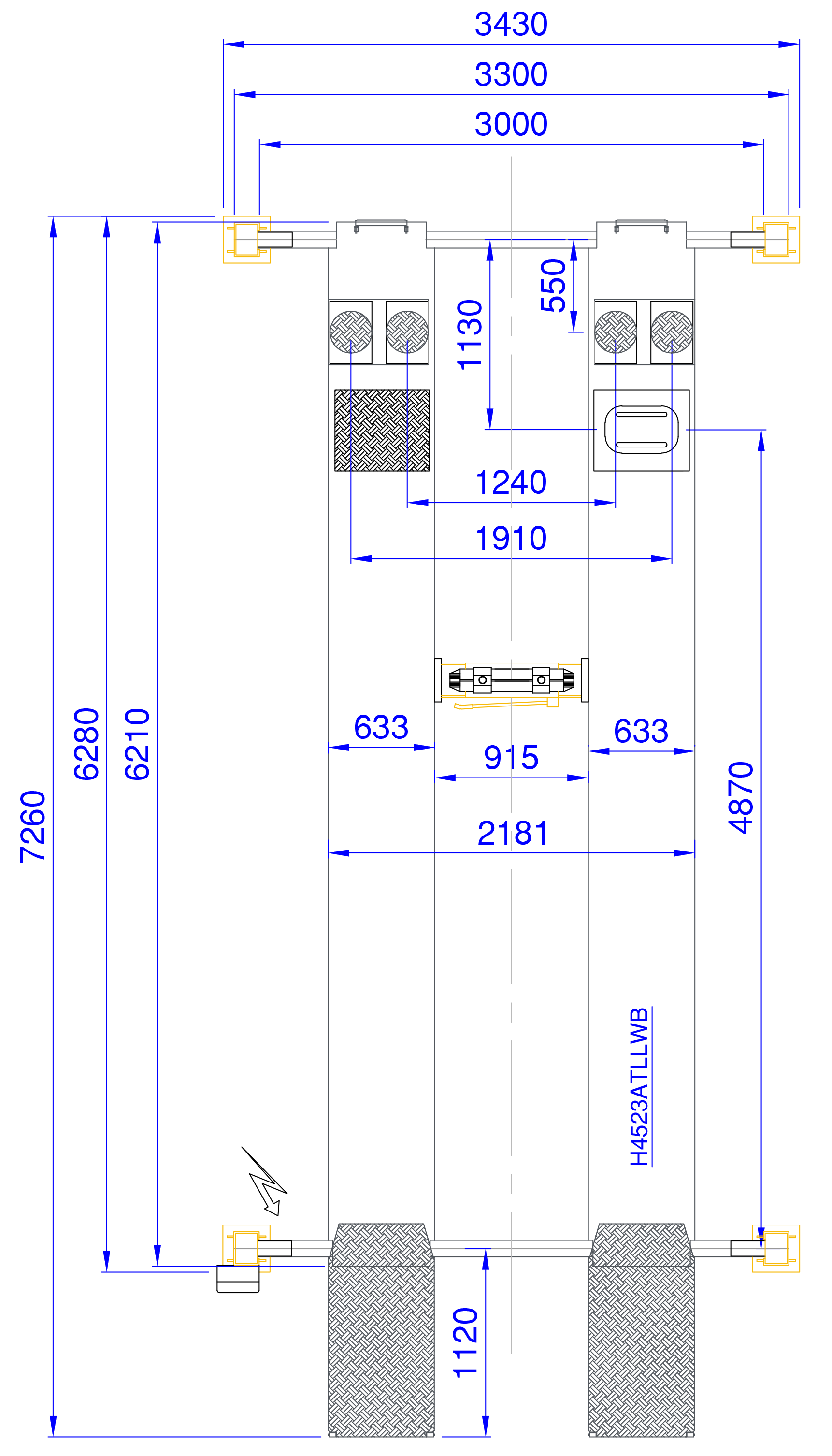

Drawing
