Bradbury H4403ATL XL 4 Post MOT Lift

The Bradbury H4403ATLXL 4.0 Tonne Class IV ATL Electro-Hydraulic Lift (Extra Long) is suitable for one man MOT testing of class IV vehicles. This is the bigger version of the SL model and features longer platforms which measure 4780mm. As standard, the lift features a powerful pneumatically operated play detector which is operated with a robust wireless handset and heavy-duty turntables recessed into the platforms.

Features

Safe & Reliable Hydraulic Operation
Complete with recessed radius plates and air operated play detector
Low profile platform
Anti tilt system
Emergency stop button
Automatic parking system
Eccentric brake system
DVSA Approved for IV Testing
Magnetic wireless handset standard
3 tonne lateral and rotational play detector standard

Technical Specification

Maximum Lifting Weight	4000Kg
Lifting Time	24-26 secs
Platform length	4780mm
Overall length	4960mm
Overall width	3030mm
Drive through width	2600mm
Each platform width	630mm
Distance between platforms	855mm
Minimum/maximum lifting height	140/1810mm
Air Supply	8 Bar
Electrical Supply – 3 Phase	Motor 380 – 415V, 3kW
Motor Size	3kW
Warranty	24 Months

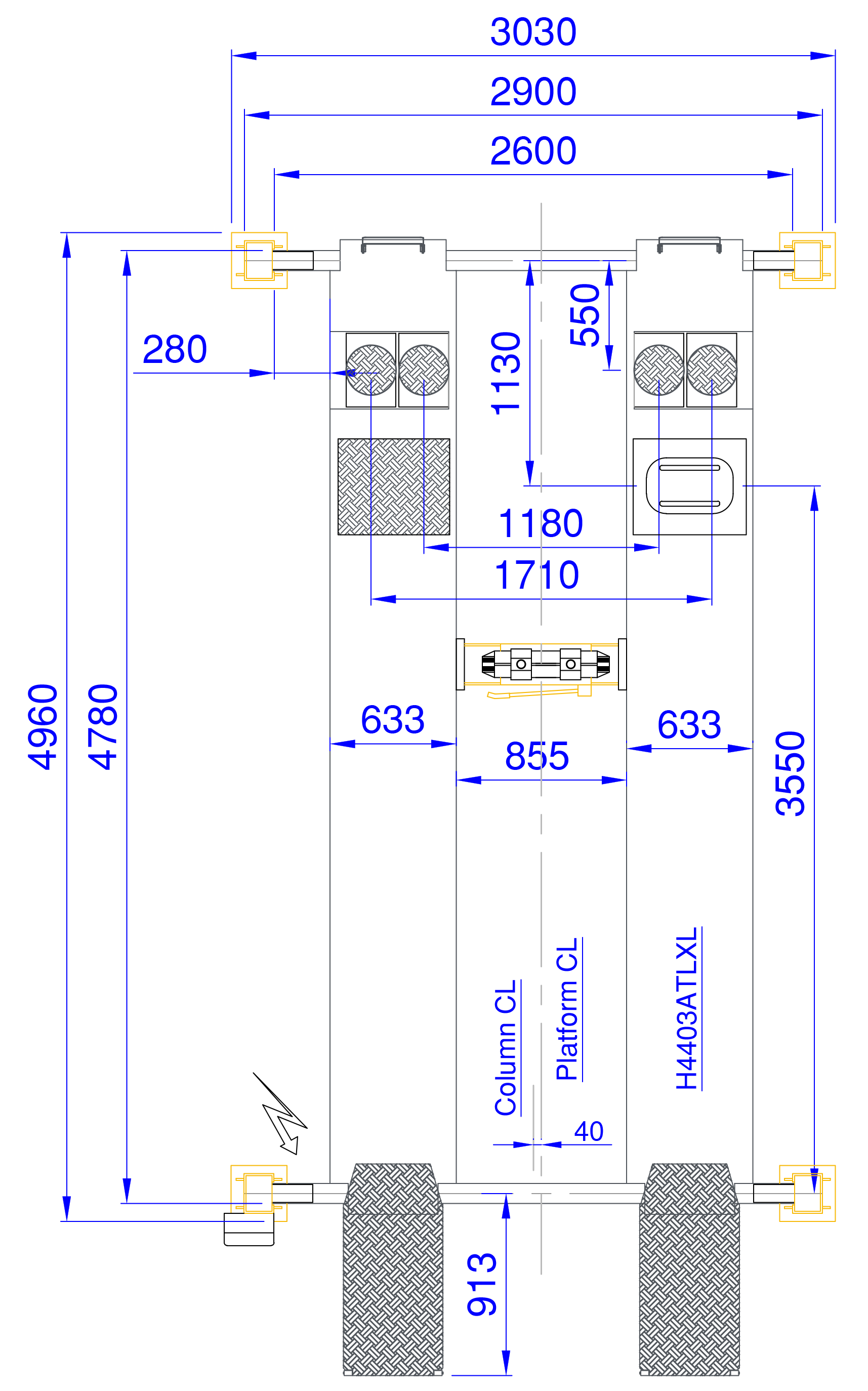

Drawing
