Bradbury H4403ATL SR 4 Post MOT Lift
Bradbury H4403ATL SR 4 Post MOT Lift

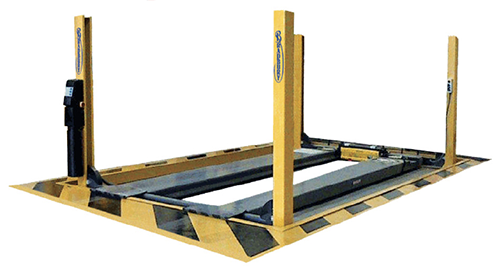

Bradbury H4403ATLSR 4.0 Tonne Class IV ATL Electro-Hydraulic Lift (Narrow) is suitable for one man MOT testing of class IV vehicles and has been specifically designed to fit into existing bays which are narrow. As standard, the lift features a powerful pneumatically operated play detector which is operated with a robust wireless handset and heavy duty turntables recessed into the platforms.
Features
- Safe & Reliable Hydraulic Operation
- Complete with recessed radius plates and air operated play detector
- Low profile platform
- Anti tilt system
- Emergency stop button
- Automatic parking system
- Eccentric brake system
- DVSA Approved for IV Testing
- Magnetic wireless handset standard
- 3 tonne lateral and rotational play detector standard
Technical Specification
| Maximum Lifting Weight | 4000Kg |
| Lifting Time | 24-26 secs |
| Platform length | 4360mm |
| Overall length | 4540mm |
| Overall width | 2780mm |
| Drive through width | 2350mm |
| Each platform width | 550mm |
| Distance between platforms | 880mm |
| Minimum/maximum lifting height | 140/1810mm |
| Air Supply | 8 Bar |
| Electrical Supply – 3 Phase | Motor 380 – 415V, 3kW |
| Motor Size | 3kW |
| Warranty | 24 Months |

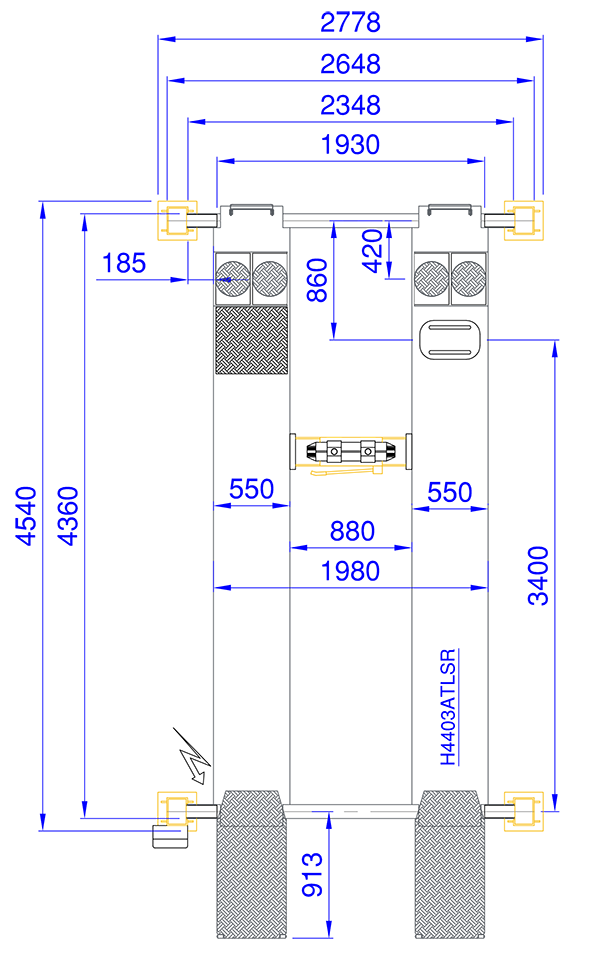

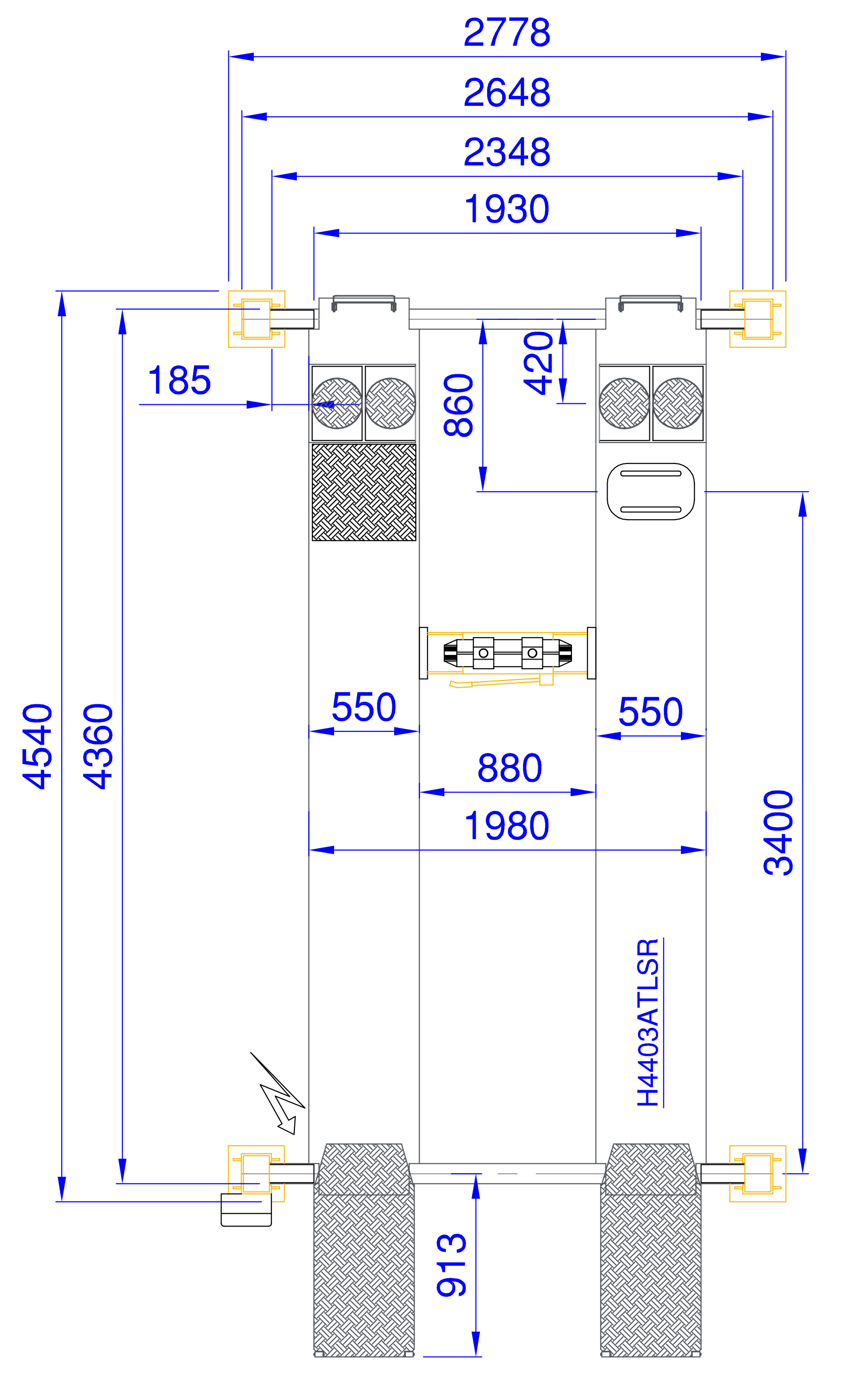

Drawing
