Bradbury H4403MOTSR 4 Post MOT Lift

The H4403MOT SR DVSA Approved 4.0 Tonne Four Post MOT Lift is suitable for two man MOT testing of class IV vehicles and has been specifically designed to fit into existing bays which are narrow.

This lift benefits from a low profile platform, automatic parking system, eccentric brake system and anti tilt system.

Features

Safe & Reliable Hydraulic Operation
Low Profile Platform
Anti Tilt System
Emergency Stop Button
Automatic Parking System
Eccentric Brake System
DVSA Approved for IV Testing
2 Year Warranty

Technical Specification

Maximum Lifting Weight	4000Kg
Lifting/Lowering Time	24-26 secs
Platform Length	4360mm
Overall Length	4540mm
Overall Width	2778mm
Drive Through Width	2348mm
Each Platform Width	550mm
Distance Between Platforms	880mm
Minimum/Maximum Lifting Height	140/1810mm
Electrical Supply – 3 Phase	Motor 380 – 415V, 3kW
Operation	Electro-Hydraulic
Air Supply	8 Bar
Warranty	24 Months

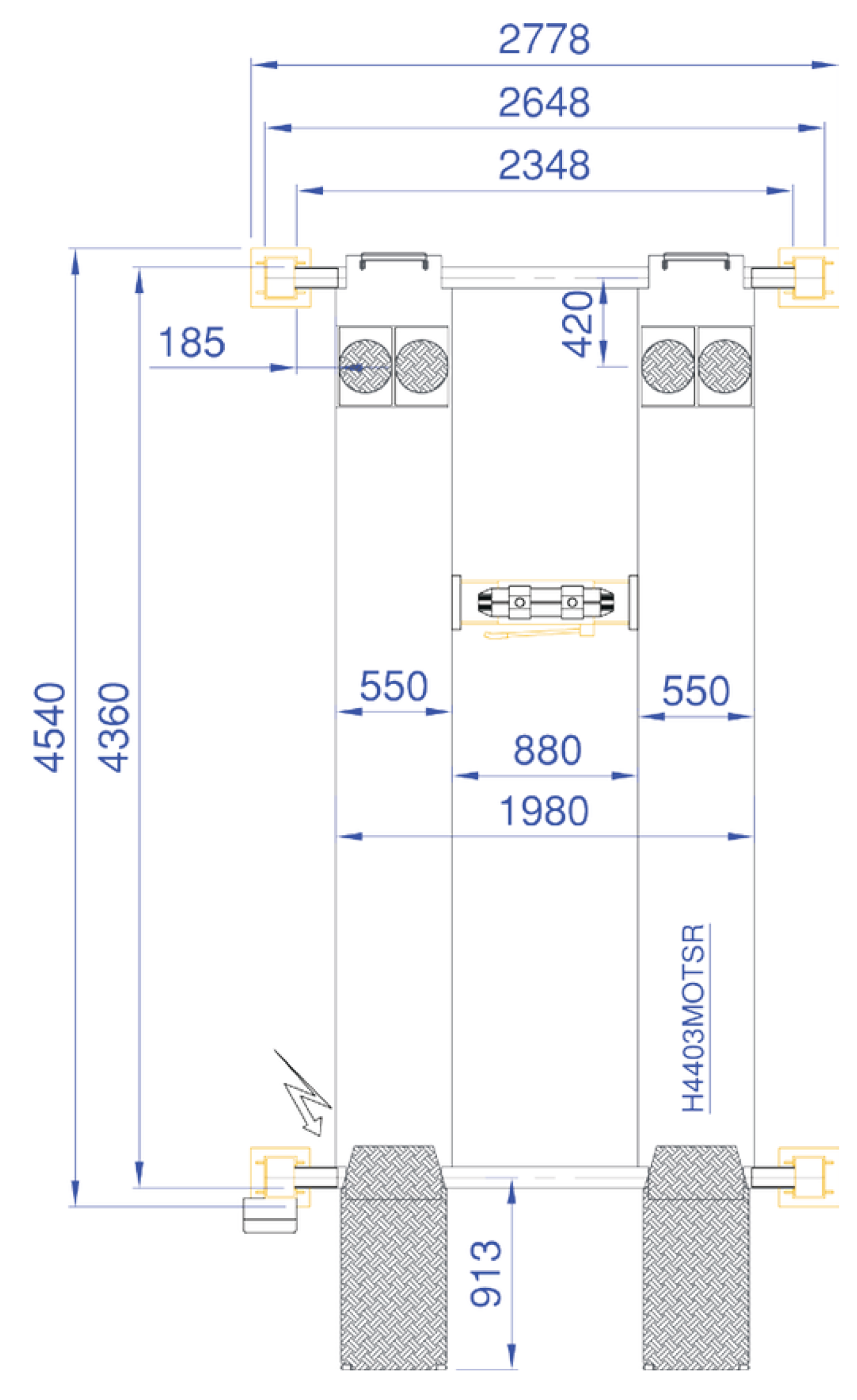

Drawing

Optional Extras

500 platform extension
Run on ramps for other applications
Jacking Beams & Air Kits
Gemlight 320 LED Lighting Kit

Call us now on 01823 328530 for more details
