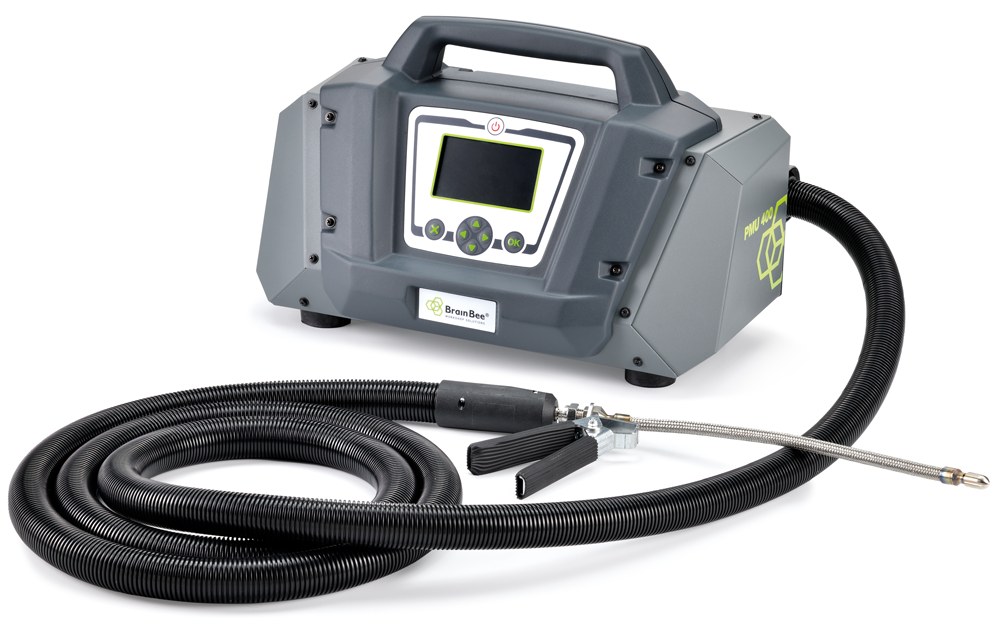

Brain Bee PMU400 Particle Counter

Brain Bee PMU400 Particle Counter

Thanks to the adoption of CPC technology - Condensation Particle Counter - BRAIN BEE offers the market an extremely innovative product ready to adapt to all the evolutions and scenarios that may occur in the coming years. This, combined with special care in the choice of materials and sensors, makes the PMU 400 the most versatile and interesting Particulate Counter of the moment.

The Particulate

Particulate emitted from the latest internal combustion engines (both diesel and petrol) have a negative impact on air quality and health. Vehicles with a particulate filter that is not in perfect condition (tampered or broken), emits high concentrations of nanoparticles. These can easily enter the human body through the breath and the long-term effects of exposure to these particles are alarming.

The single nano-particle has a size at least 100 times smaller than the wavelength of visible light, so they're so small that cannot be counted o measured with traditional opacimeters.

CPC Technology

MAHLE has chosen to adopt the CPC - Condensation Particle Counter technology, which in addition to being particularly robust, allows high measurement accuracy even at low concentrations (difficult to obtain with other technologies).

This allows to dilute the sample coming from the exhaust pipe, with clean air (free of particulates) up to 200 times, in order to limit the deposition of particulate and dirt in the most delicate parts of the instrument (laser-scattering measuring bench), and to obtain long service intervals and simple maintenance operations.

PMU 400 is a particularly reliable instrument in measuring, while not giving up on the great ease of use by the operator.

Finally, this technology makes it possible to face the future evolutions of the anti-pollution regulations, which will require more stringent limits and greater measurement accuracy, as it will be easy to adapt the device, also thanks to the software developed by MAHLE.

PMU 400 can be used both as a stand alone station, and perfectly integrated with other Emission Line BRAIN BEE stations, using the same software interface.

Advantages at a glance

• Innovative and ready for any future scenario
• New design, forerunner to the Emission Line of the future
• Guaranteed modularity: designed to be included in existing configurations
• Extreme precision of result, but maintaining absolute simplicity of use
• Few minutes to finish the test
• Robust and easy to service
• Solid and compact: high-quality materials guarantee durability of the instrument, while the small dimensions, together with the practical ergonomic handle, keep it easy to handle.
• The 3.5 m heated pipe allows you to operate with comfort even on trucks or in any working situation.
• The work software allows you to integrate PMU 400 with any existing Emission Line station.
• The display clearly shows all the stages of the test as provided by the legislator, allowing you to easily fulfil all the steps that allow the quick closing of the test.

Measuring Range

• Particulate size 23 ÷ 200 nm
• D50 23 nm
• Particulate Concentration (metrologically relevant) 0 ÷ 5M #/ccm Res. 100
• Concentration (for diagnostic purposes) 0 ÷ 30M #/ccm Res. 100
